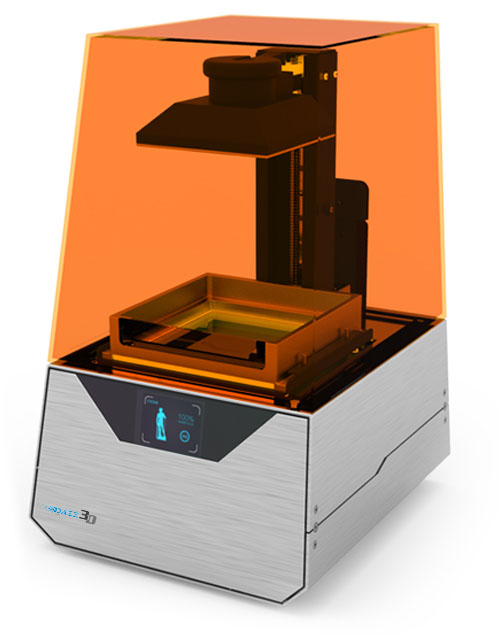

The Best SLA 3D Printer For Prototyping

Dazz 3D S130 is an ideal choice for education association, dental professionals, jewelry artisans, and firms aiming to bring their modeling or prototyping activities to the next level.

  • Speed

    2.5

    M/s

  • Build Volume (X, Y, Z)

    130 x 130 x 180

    mm

  • Layer Thickness

    25 / 50 / 100

    Microns

See The Video Get A Quote
  • Large Prints
    Large Prints
  • High Resolution 50 Micron
    High Resolution 50 Micron
  • High Speed
    High Speed
  • Automatic Support Generation
    Automatic Support Generation

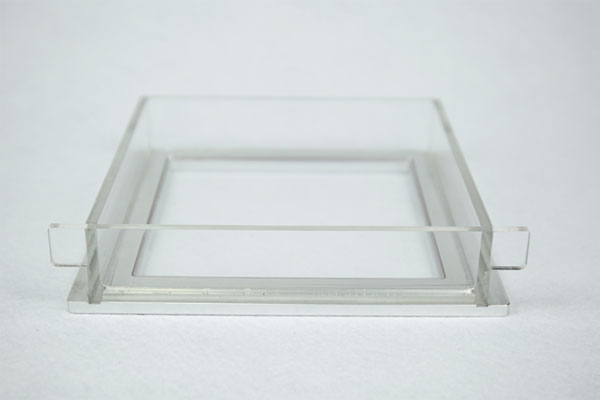

Low Maintenance Cost

Most SLA 3D printers have a consumable resin tank that requires replacement after every 2L of resin printed. Dazz 3D patented resin tank is coated with a special release film which increase the life span by 30x reducing overall maintenance fees of the resin tank.

User Friendly Interface

Software is developed with easy navigation which provides power functions such as support generation algorithm and slicing. We dedicated to user needs and focused on enhancing user experience.

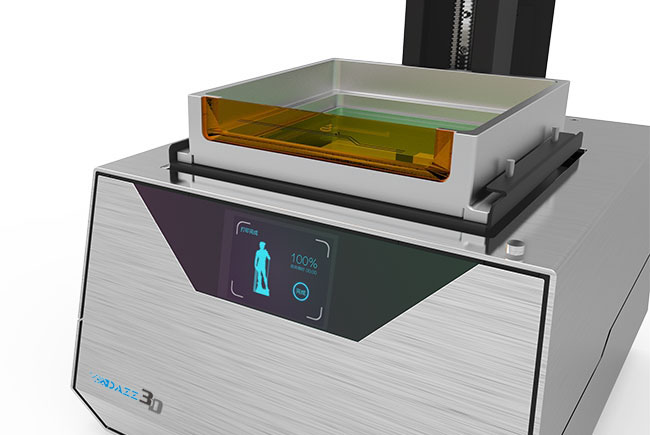

Real Time Monitor

Real time monitor tracks product print cycle accurately.

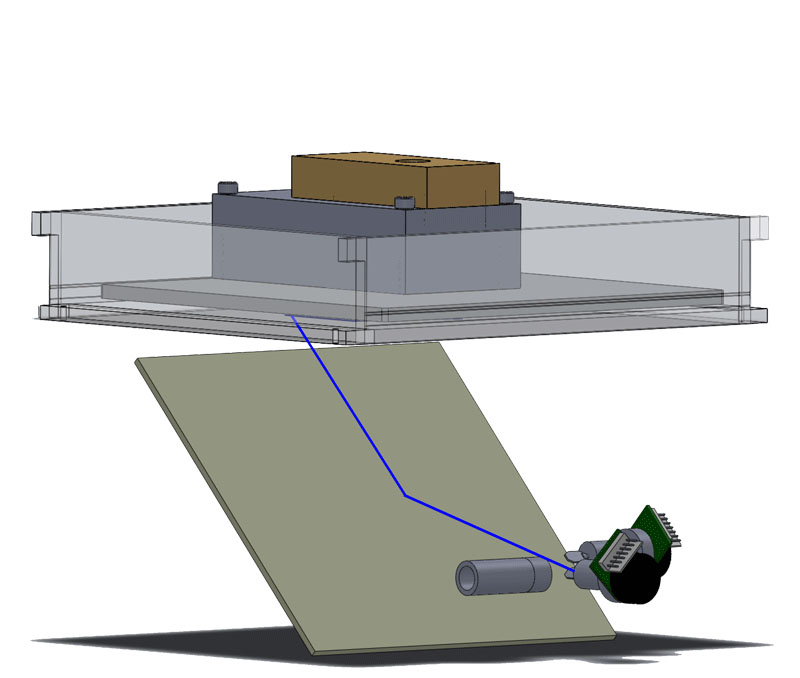

Laser System

The S130 has a very small spot diameter of 0.07mm. It can achieve incredibly fine detail over the entire build platform with no distortion. Fast moving UV laser beam with Close Loop Galvo Scanner cures liquid resin for ultra smooth 3D printed parts.

Our patented resin carries high tensile strength, high elongation, and elastic properties, making it preferable to other resin-based materials currently on the market. Combination of patented resin and high accuracy 3D printer produce superior result with fine detail and smooth surface. It is ideal for providing fast design verification models. Four color options: white, black, red and clear.

  • Tech Data
    SDS

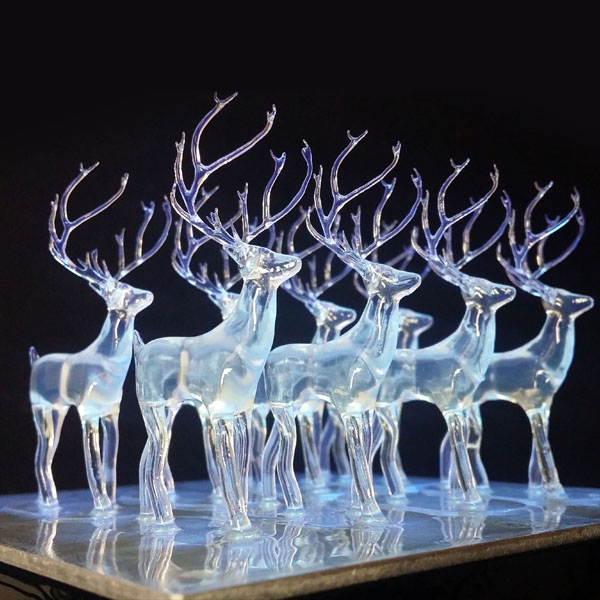

    Featuring excellent surface finish quality and feature resolution, Standard Clear is an ideal 3D printing solution for providing fast design verification models.

  • Tech Data
    SDS

    White resin has better durability and smooth surface which is ideal for manufacture prototyping such as connectors and assembly parts.

  • Tech Data
    SDS

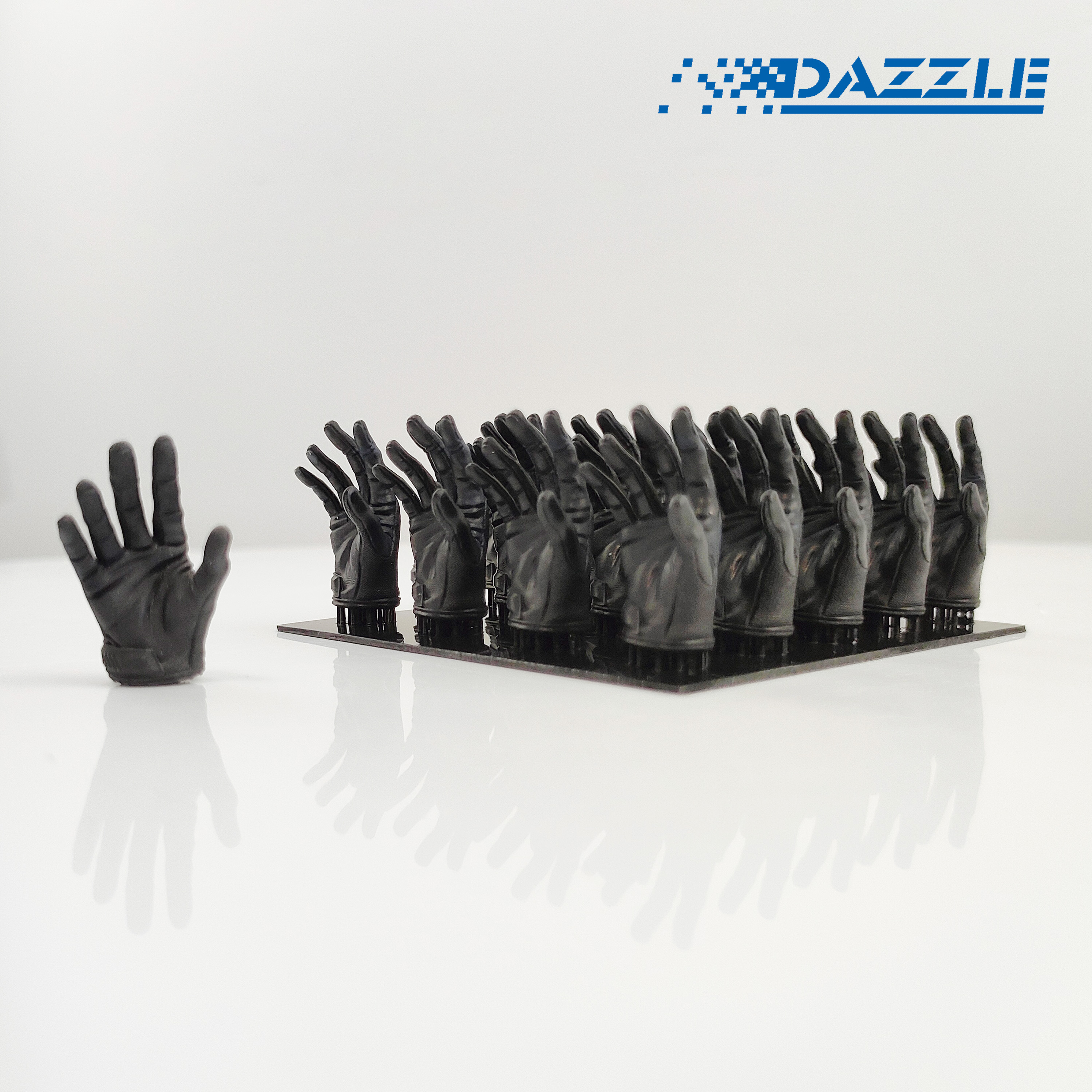

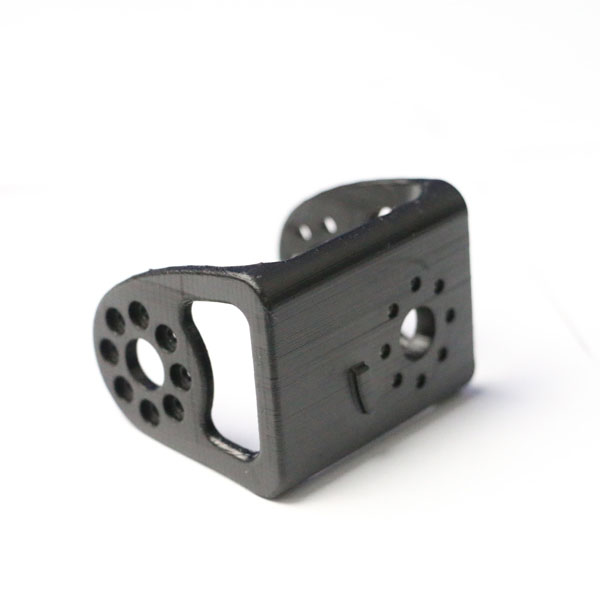

    Prototype printed with standard black resin shows better detail compare with similar material on the market.

  • Tech Data
    SDS

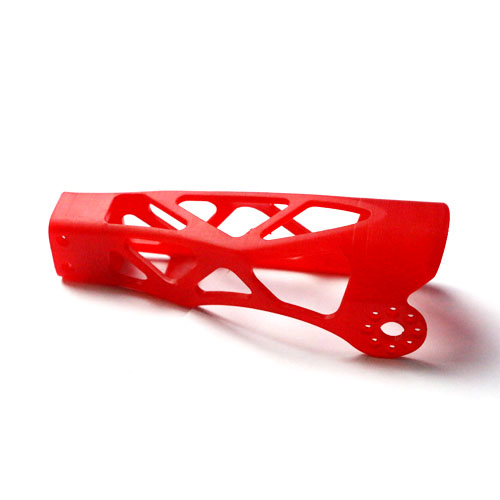

    High temperature red resin has glass state properties at 136℃. Maintain optimal tensile strength, high elongation at break and elastic properties at temperature below 80C.

Dazzle-3D is self-develop software by Dazz 3D team. It is a powerful, simple and user friendly software. We dedicated to user needs and focused on enhancing user experience. Easily comprehensible software can be utilize after quick learning.

Windows

Windows7 or higher, OpenGL 3.0/2G RAM
Size:20M

Mac

Mac OS X 10.9 and Higher, Minimum 2GB RAM
Size:20M

Open file

Scale

Rotate

Layout

Add Support

Print
  • Open file

    Add .STL or .OBJ to Dazzle3d software.

  • Scaling

    Enlarges or diminishes objects.

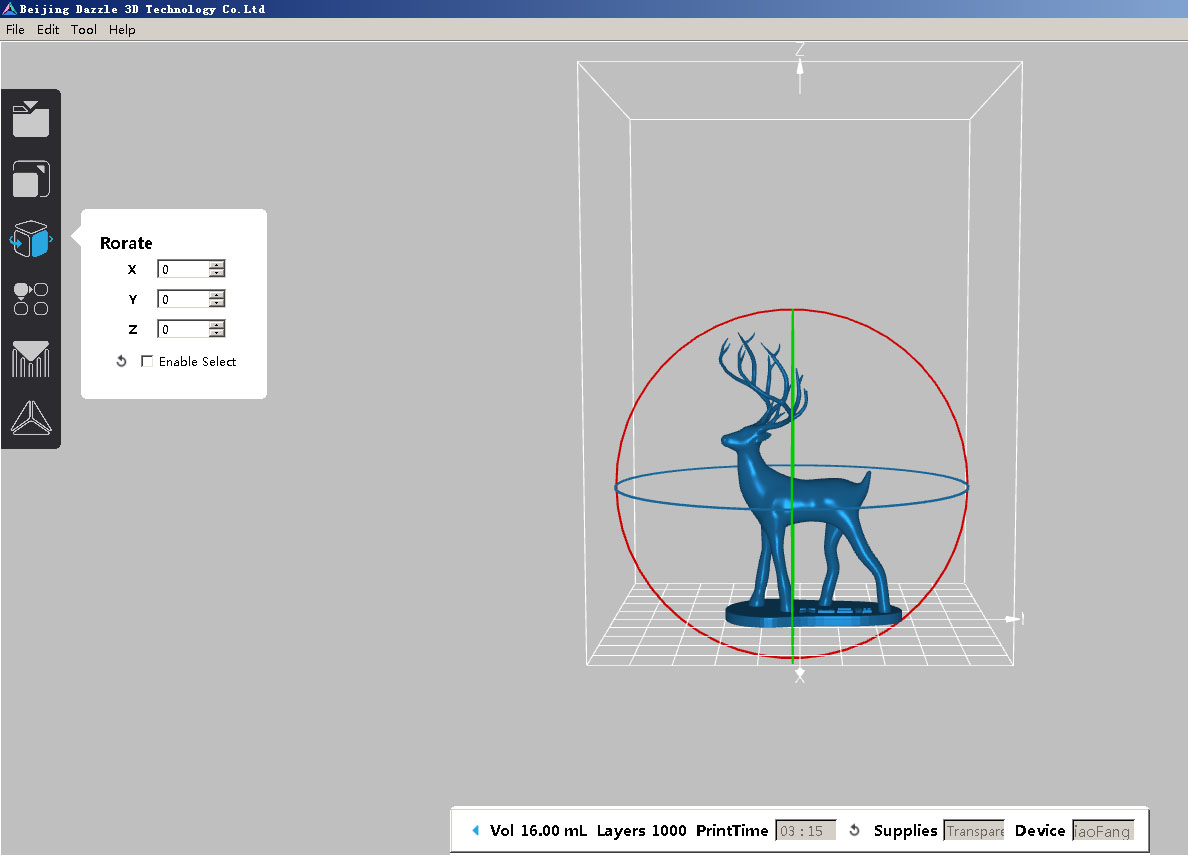

  • Rotate

    Rotates around the center to make the object printing more easily and has a high quality surface.

  • Layout

    To copy a layout and place the models in the desired position.

  • Add support

    Prepare models for reliable printing with Automatic or manual support generation.

  • Slicing and Print

    Automatic slicing and then importing data from computer into 3d printer.

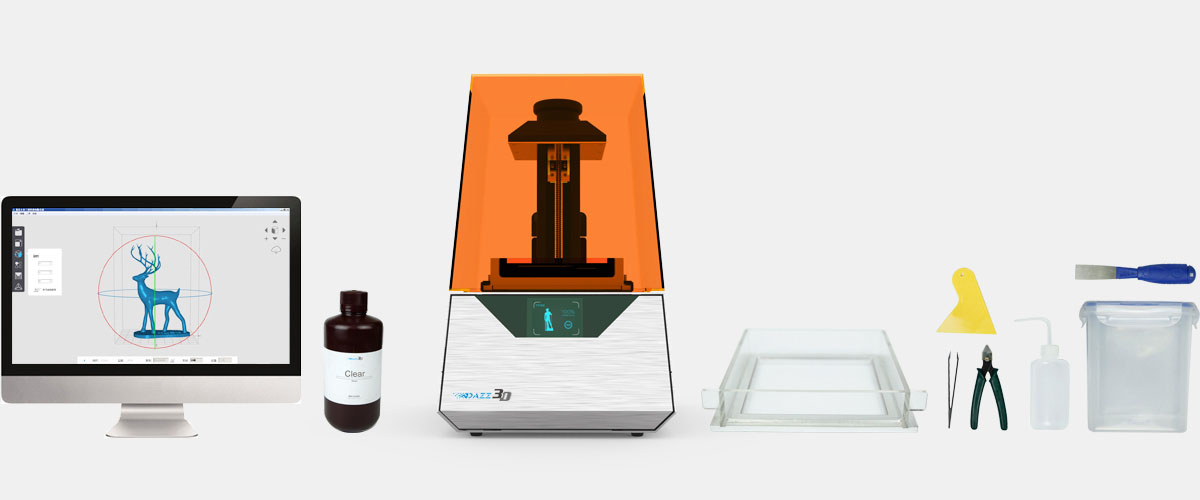

S130 Bundle
  •
    1 x Dazz 3D S130 printer
  •
    1 x 1L Standard prototyping resin
  •
    1 x Resin Tank
  •
    1 x Finishing kit
Finishing Kit
  •
    1 x Scraper
  •
    1 x Plier
  •
    1 x Tweezer
  •
    1 x Squeegee
  •
    2 x Watertight containers
  •
    1 x Filter
  •
    Nitrile gloves
Printer Specs
  • Technology
    Stereolithography (SLA)
  • Footprint
    330 x 290 x 460mm (13 x 11.4 x 18.1 in)
  • Operating Temperature
    18-28ºC
  • Net Weight
    10kg
  • Connectivity
    USB
  • Input Power
    100-240V, 50-60HZ , 2A
  • Output Power
    24V, 2.5A
Printing Specs
  • XYZ Resolution
    0.05mm (0.00197 in)
  • Layer Thickness
    0.025 / 0.05 / 0.1 mm
  • Build Volume (X, Y, Z)
    130 x 130 x 180mm (5.1 x 5.1 x 7.1 in)
  • Laser Scanning Speed
    2.5 m/s
  • Minimum Hole Diameter
    0.5mm (0.01969 in)
  • Minimum wall thickness
    0.3mm (0.01181 in)
Software Specs
  • System Requirements
    Windows7 or higher, OpenGL 3.0/2G RAM
  •
    Mac OS X 10.9 and Higher, Minimum 2GB RAM
  • File Size
    20MB
  • Input File
    .STL and .OBJ
  • Supports
    Automatic and manual support generation, Easily removable
Features
  •
    Simple print setup
  •
    Auto-generation of supports & manual support editing features
  •
    Augmentation, rotation & placement
  •
    Layer slicer for path inspection
  •
    .STL and .OBJ file input
Material
  •
    Dazz 3D Resin
  •
    Third Party Resin
Printer Specs
High precision dental models

The S130 allows you to print precise dental models from intraoral or 3D scans, which can then be used to test the fit of crowns, copings, and dental appliances.

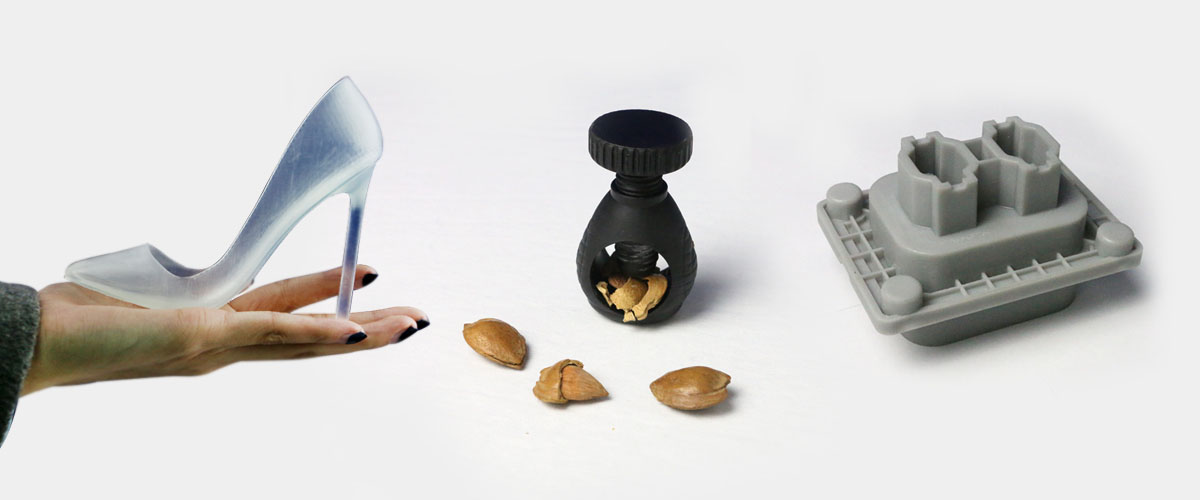

Manufacturing

The S130 provides a quick way to evaluate, optimize and communicate your designs with functional prototypes. Most importantly it can reduce production costs in the long term.

Art and Entertainment

For innovators of the 3D printing world, there are no limits. They all seem determined to take this technology and exploit it as much as possible, creating beautiful, functional and fashionable works. The S130 can print more than you can imagine in incredible detail and smooth surface.

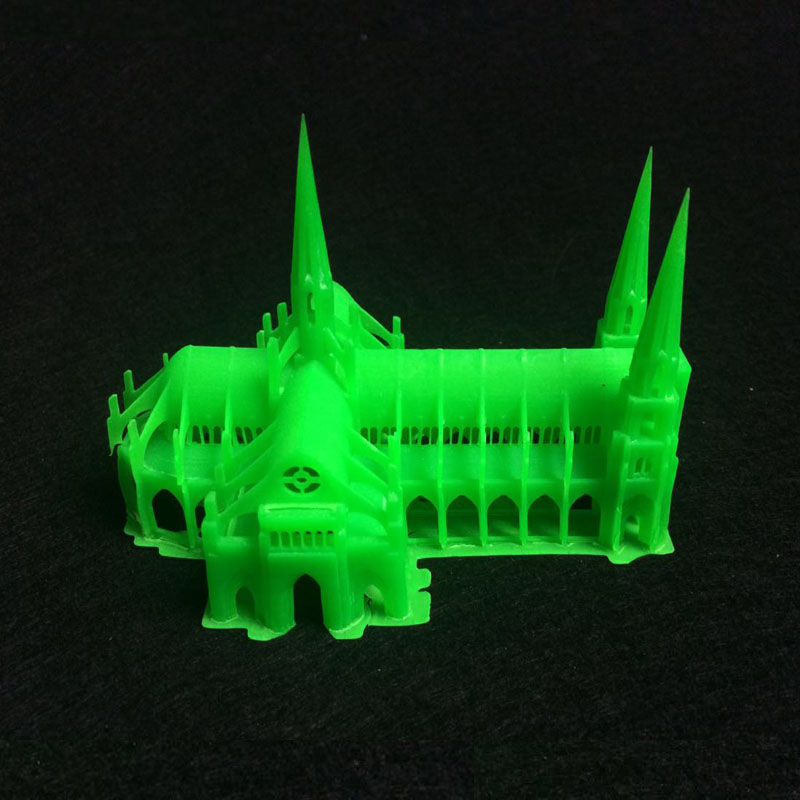

Architecture

It’s easy for S130 to create complex, accurate and durable scale models quickly and cost-effectively. Magnificent 3D printed architecture scale models can help architects impress their clients, create and seize more opportunities. All of this can be done in-house

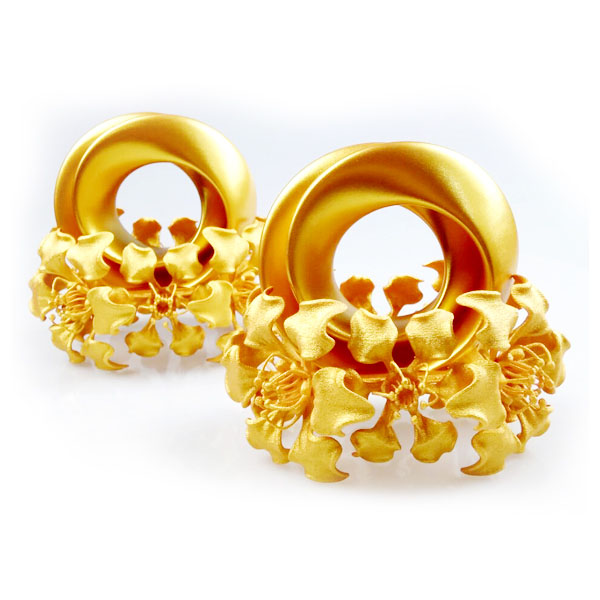

Jewelry

The S130 printer is a wise choice for jewelry designers. High resolution makes it easy to create crisp details. Designers are able to quickly review their design with 3D prototype improving lead time.

Education

The S130 is widely used in elementary school to universities. Help students and teachers to bring their ideas to life.

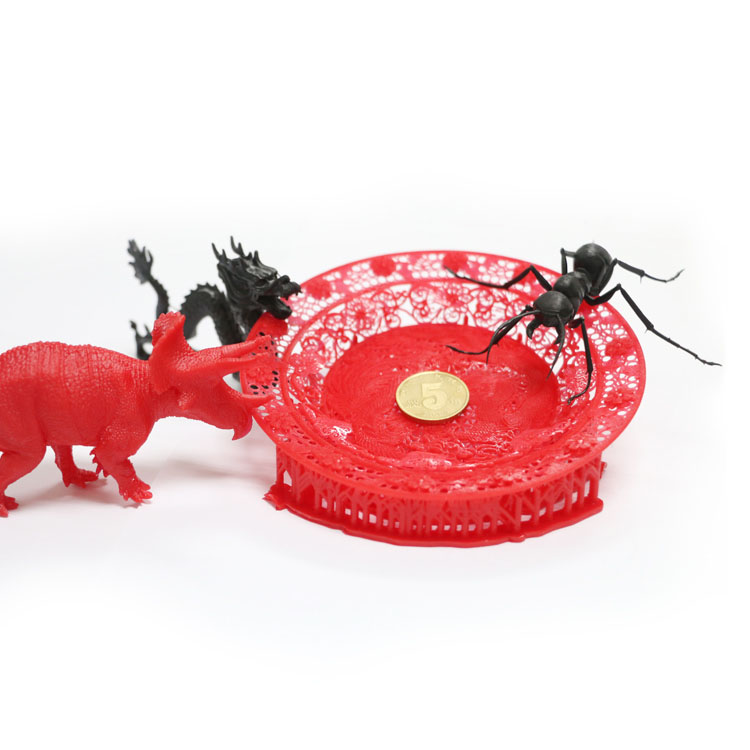

Printed by Dazz S130
