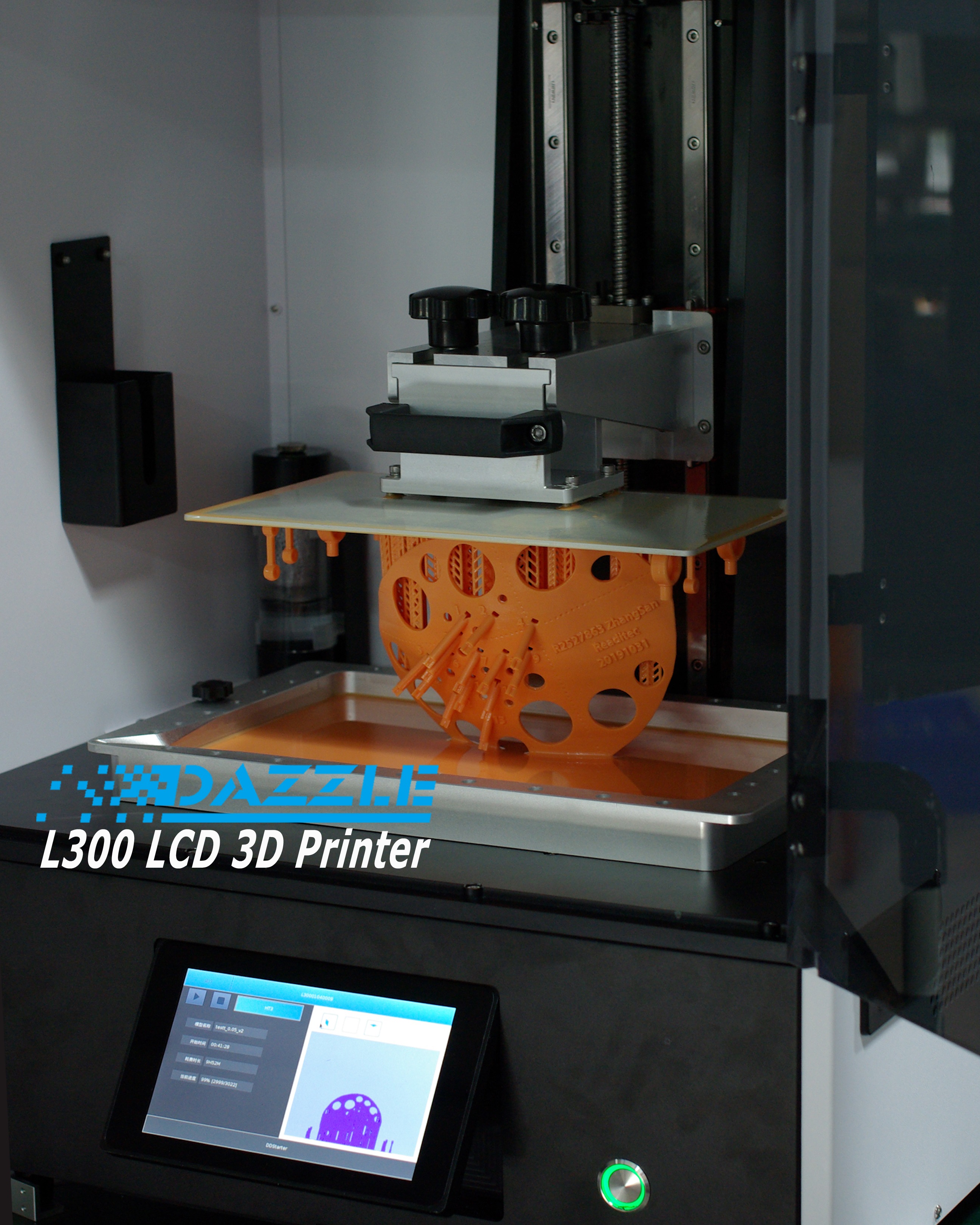

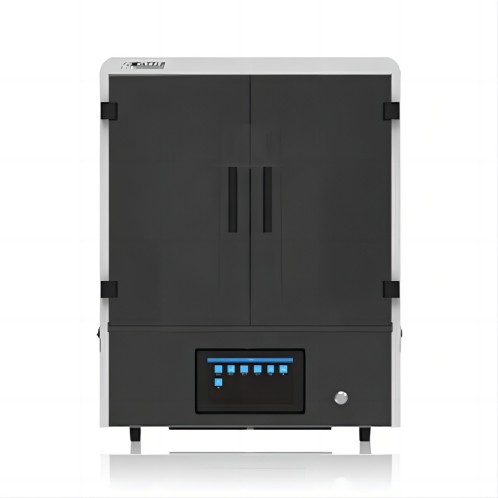

Large Print Size SLA-LCD 3D Printer

Dazzle L300 3Dprinter has a larger print size up to 295*195*300 mm, with high printing precision can be prefect used in industry, dental, jewelry, animation, prototyping, education.With Auto Resin System, Intuitive Control, Auto Resin Wiper, and Air-purification system super user friendly!

  • Speed

    36

    mm/h

  • Build Volume (X, Y, Z)

    295 x 165 x 300

    mm

  • Layer Thickness

    25 / 35 / 50 /100

    Microns

See The Video Get A Quote
  • Humanization design
    Humanization design
  • High precision
    High precision
  • Large print size
    Large print size

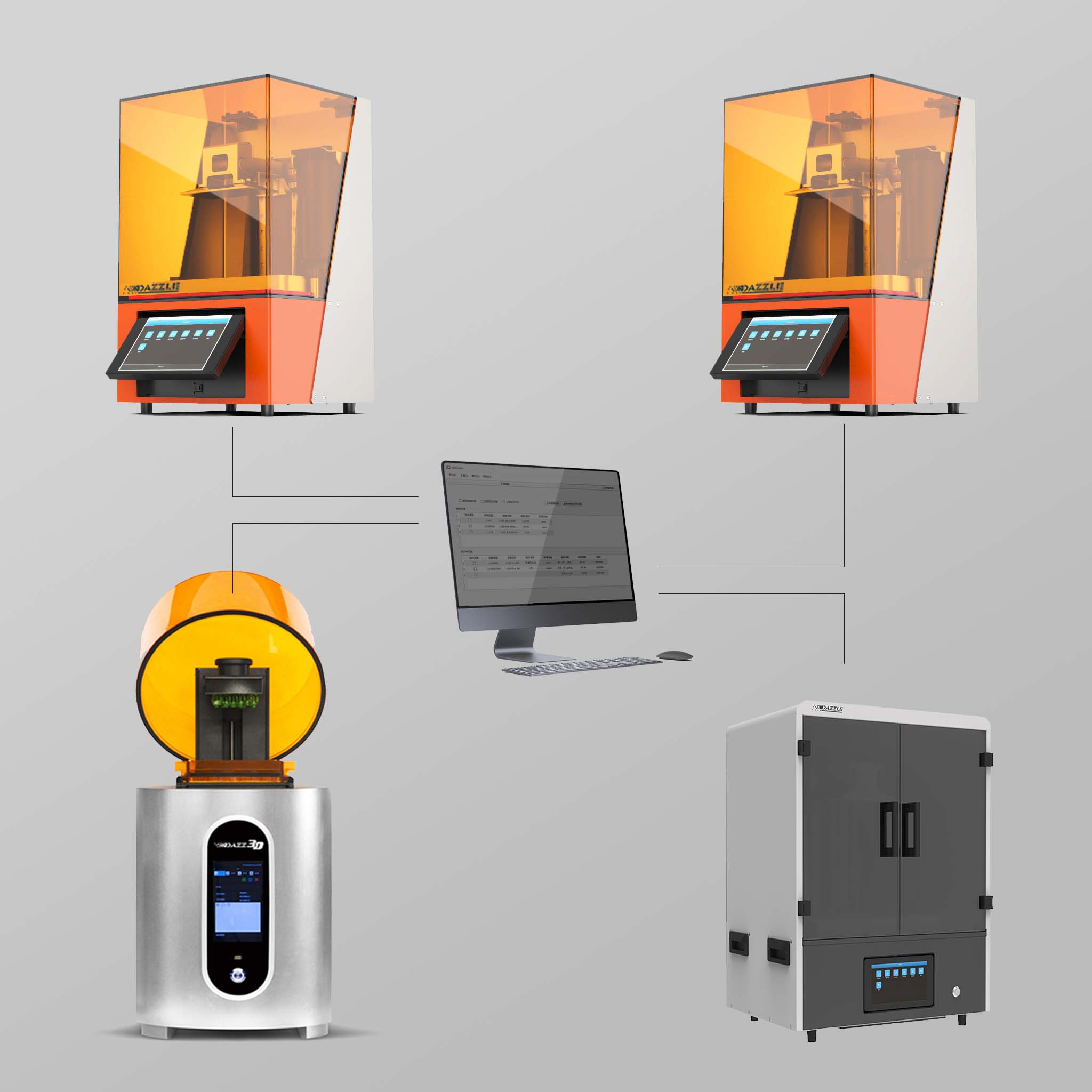

  • Linkage of multiple machines
    Linkage of multiple machines

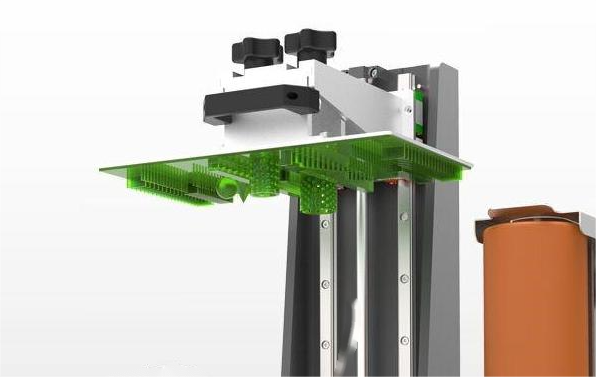

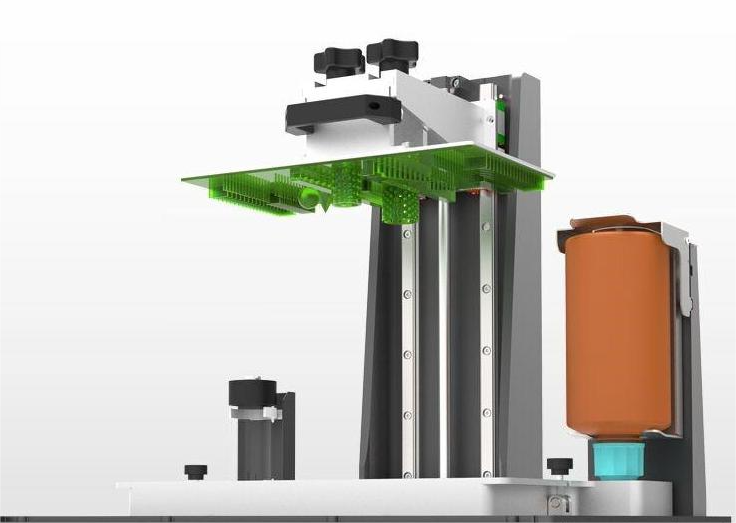

High Precision

Layer Thickness: 0.025 / 0.035 / 0.05 / 0.1 mm Precision: Z Axis: 10 microns , XY Axis: 76 microns

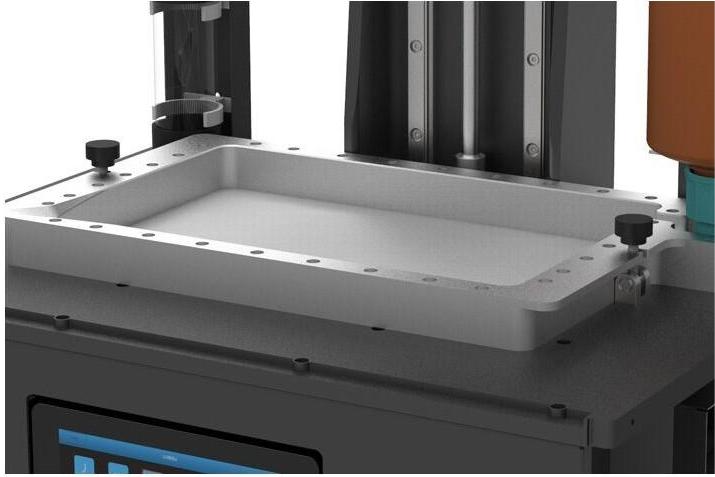

Aluminium alloy Resin Tank

L300 special resin tank, metal material, large capacity, high stability. One-Time Printing Of Large Models is not a problem

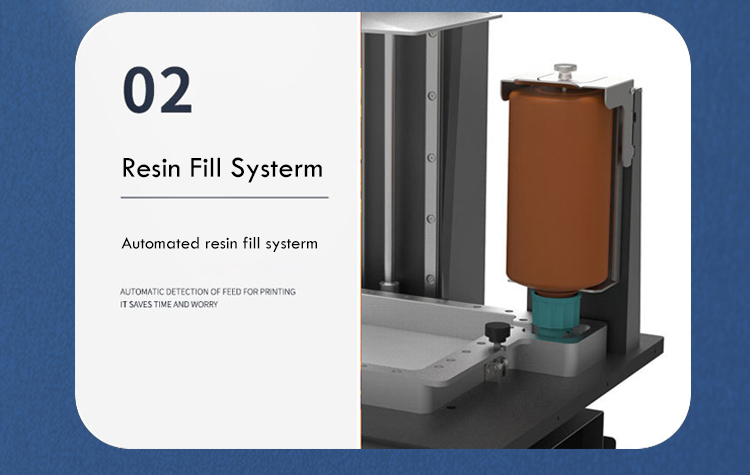

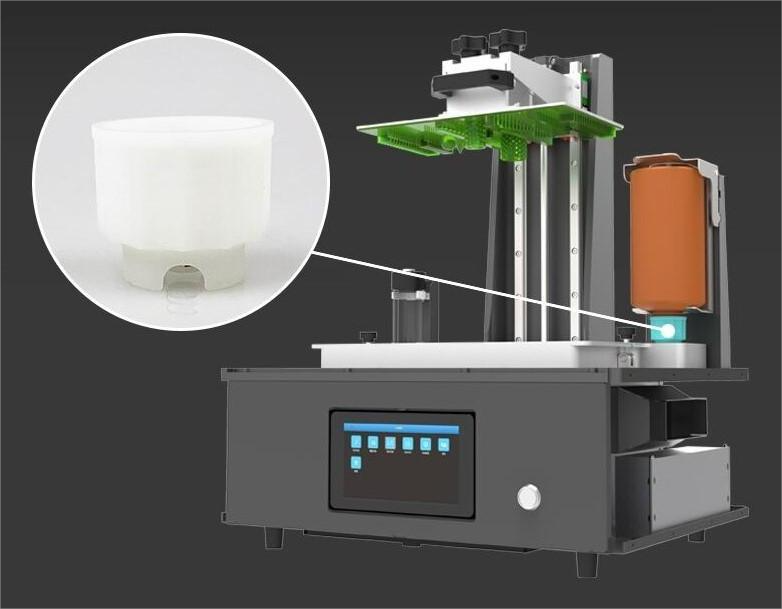

Resin Fill Systerm

Automated resin fill systerm AUTOMATIC DETECTION OF FEED FOR PRINTING IT SAVES TIME AND WORRY

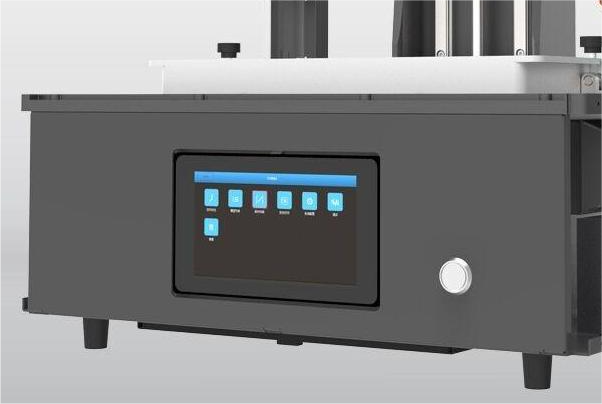

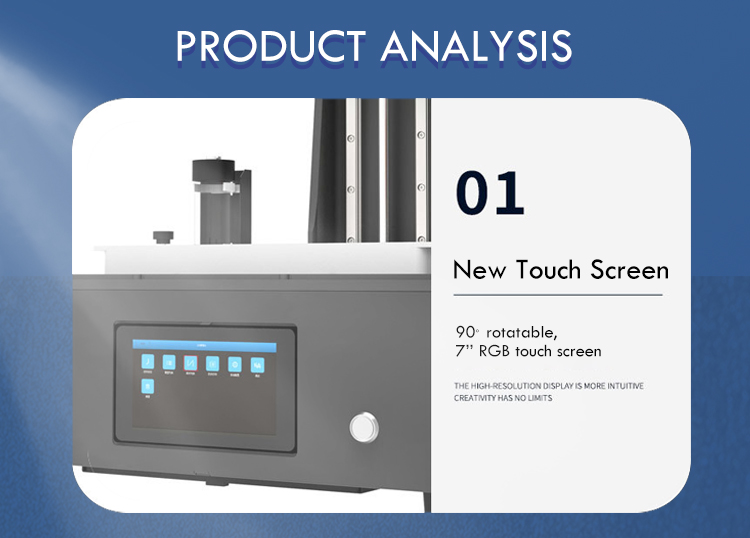

Intuitive Control

With the touchscreen monitor on the body, users change print settings &track printing status anytime with just a simple touch control.

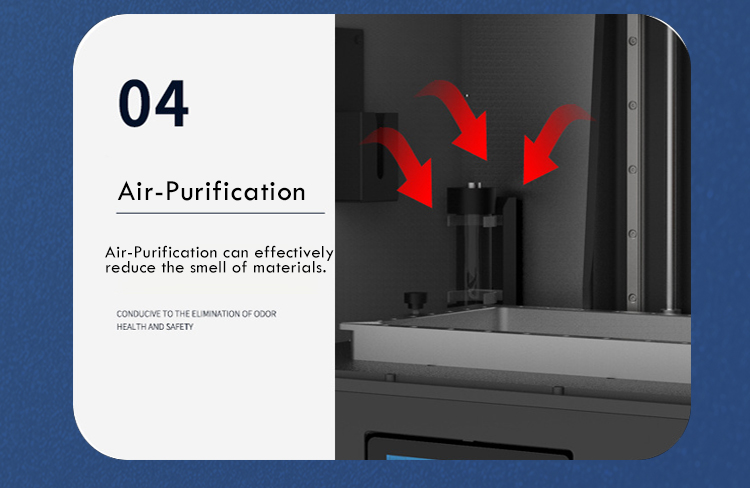

Air-Purification

Air-Purification can effectively reduce the smell of materials.CONDUCME TO THE ELIMNATION OF OOORHEALTH.AND SAFETY

Excellent Forming

High printing accuracy and texture MORE INTUITIVE OPERATION,CONVENIENT AND FAST HIGH RESOLUTION AND CLEAR DISPLAY

Packing Besides Box

Wood active packaging, beautiful and safe

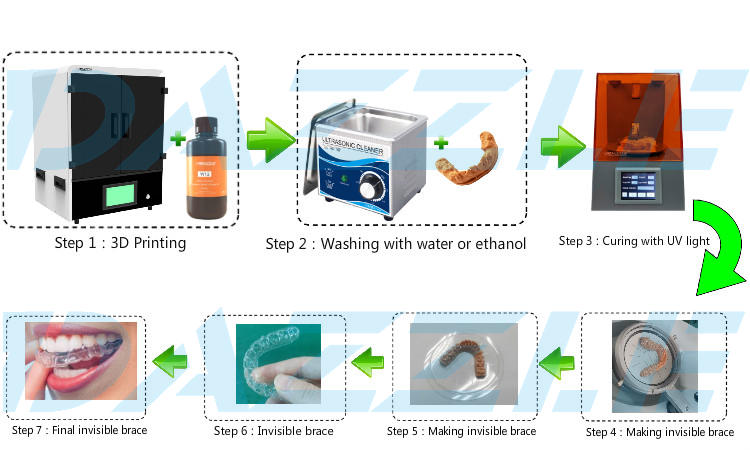

Operation Flow Chart

Tooth model flow diagram demonstration using L300 printer with W12 resin

Our patented resin carries high tensile strength, high elongation, and elastic properties. We also provide castable wax resin. Combination of patented resin and high accuracy 3D printer produce superior result with fine detail and smooth surface. It is ideal for providing fast design verification models.

  • Tech Data
    SDS

    WG5 Rigid: Features high resistance to deformation, high rigidity and polished finish. Performs well in printing prototypes, portraits, and dentistry models.

  • Tech Data
    SDS

    W12 Water Cleanable Resin for Education

Dazzle-3D is self-develop software by Dazz 3D team. It is a powerful, simple and user friendly software. We dedicated to user needs and focused on enhancing user experience. Easily comprehensible software can be utilize after quick learning.

Windows

Windows7 or higher, OpenGL 3.0/2G RAM
Size:20M

Mac

Mac OS X 10.9 and Higher, Minimum 2GB RAM
Size:20M

Open file

Scale

Rotate

Layout

Add Support

Print
  • Open file

    Add .STL or .OBJ to Dazzle3d software.

  • Scaling

    Enlarges or diminishes objects.

  • Rotate

    Rotates around the center to make the object printing more easily and has a high quality surface.

  • Layout

    To copy a layout and place the models in the desired position.

  • Add support

    Prepare models for reliable printing with Automatic or manual support generation.

  • Slicing and Print

    Automatic slicing and then importing data from computer into 3d printer.

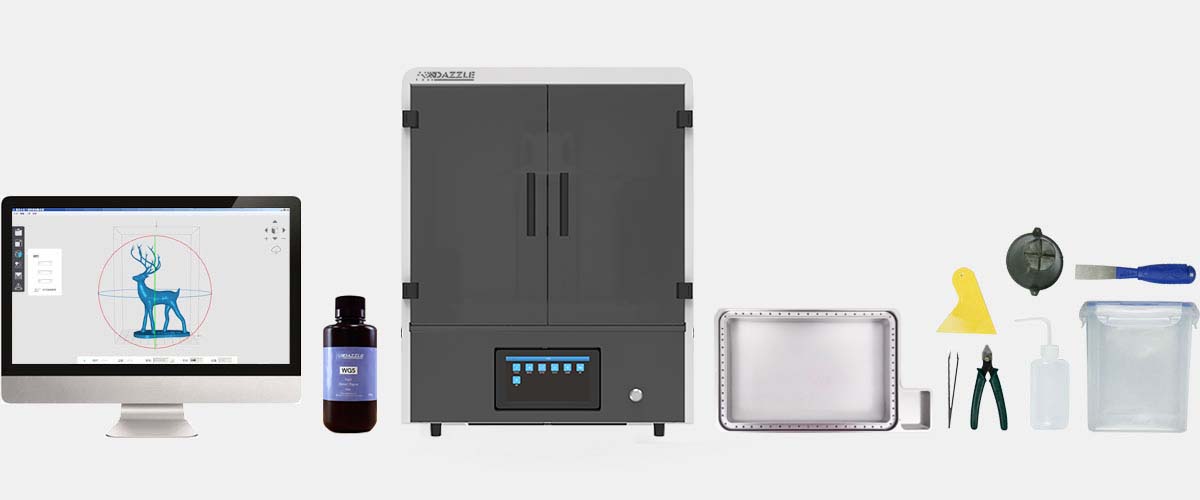

L300 Bundle
  •
    1 x Dazzle L300 3D printer
  •
    1 x Resin Tank
  •
    1 x Finishing kit
Finishing Kit
  •
    1 x Scraper
  •
    1 x Plier
  •
    1 x Tweezer
  •
    1 x Squeegee
  •
    2 x Watertight containers
  •
    1 x Filter
  •
    Nitrile gloves
Printer Specs
  • Technology
    LCD Stereolithography (LCD-SLA)
  • Footprint
    567(L)*439(W)*702(H) mm
  • Operating Temperature
    18-28ºC
  • Net Weight
    45kg
  • Connectivity
    USB,WiFi,Ethernet
  • Input Power
    100-240V, 50-60HZ , 2A
  • Output Power
    24V, 4A
Printing Specs
  • XY Resolution
    0.047mm
  • Z Resolution
    0.01mm
  • Layer Thickness
    0.025 / 0.035 / 0.05 / 0.1 mm
  • Build Volume (X, Y, Z)
    295(L)*165(W)*300(H) mm
  • Laser Scanning Speed
    12-36mm/hr
  • Minimum Hole Diameter
    0.3mm
  • Minimum wall thickness
    0.2mm
Software Specs
  • System Requirements
    Windows,Mac
  • File Size
    30MB
  • Input File
    .STL , .OBJ , .DDEB and .DDWP
  • Supports
    Automatic and manual support generation, Easily removable
Features
  •
    Simple print setup
  •
    Large print size: 295(L)*165(W)*300(H) mm
  •
    Auto-generation of supports & manual support editing features
  •
    Augmentation, rotation & placement
  •
    Layer slicer for path inspection
  •
    .STL , .OBJ , .DDEB and .DDWP file input
  •
    Auto resin wiper
  •
    Auto resin system
  •
    Intuitive control
  •
    Air-purification system
  •
    Fast print speed
Material
  •
    Dazz 3D Resin EC08,HT3,F20,R1,LC09,WG5, EC18, SG03
  •
    Third Party Resin
Printer Specs
  • 5c7e3c9cc7-l300-3d-printer-parametersdazzle-3d.pdf
    Data Sheet

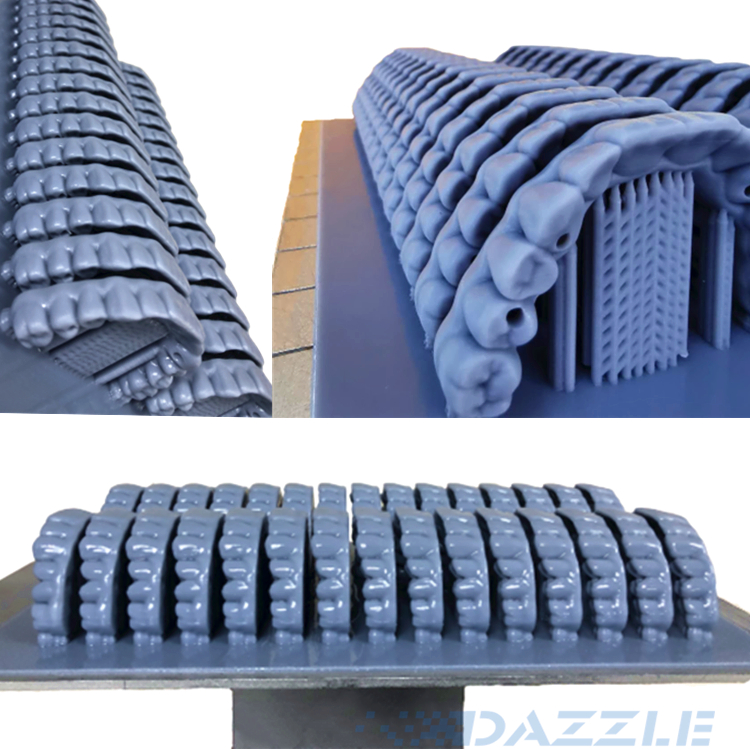

Dental

The L300 allows you to print precise dental models from intraoral or 3D scans, which can then be used to test the fit of crowns, copings, and dental appliances.

Sculpture

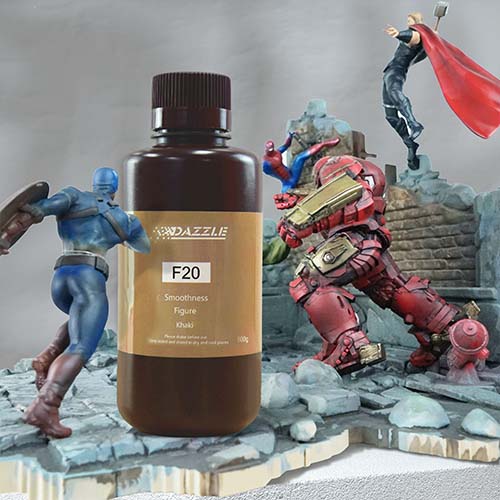

Thank to the high precision and the F20 resin we can print smoothly and precisely, best for use in portrait

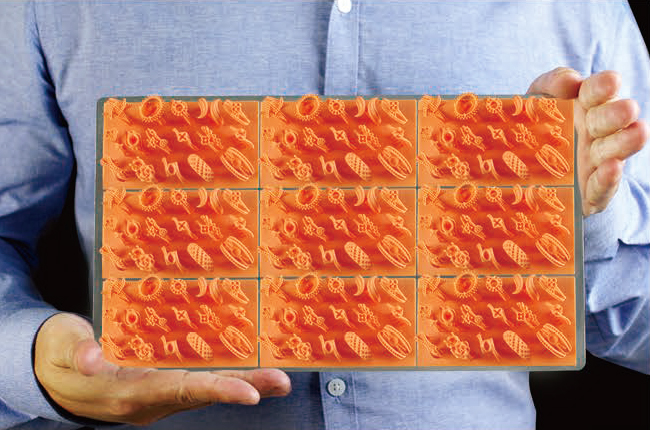

Jewelry

The L300 printer is a wise choice for jewelry designers. High resolution makes it easy to create crisp details. Besides if you use the casting wax resins to print model you can use them directly.

Prototyping

The L300 provides a quick way to evaluate, optimize and communicate your designs with functional prototypes. Most importantly it can reduce production costs in the long term.

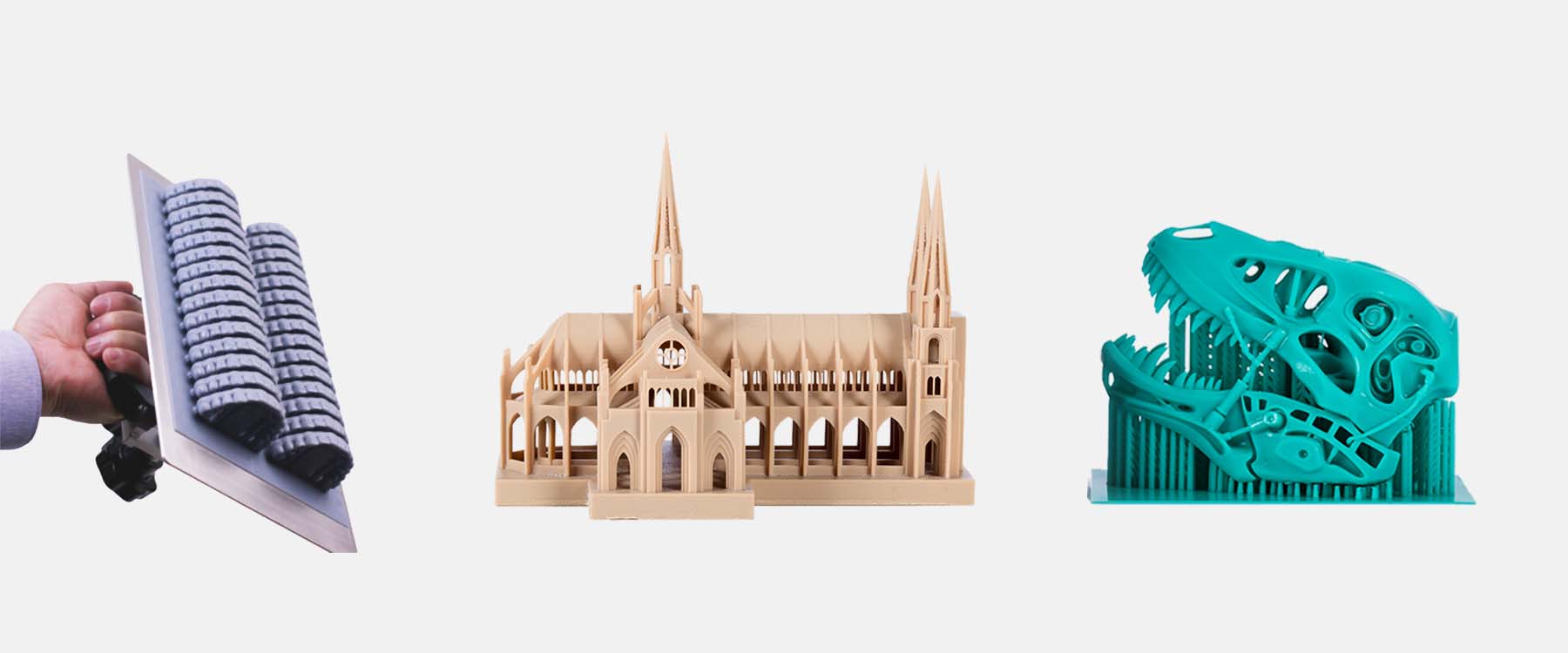

Printed by Dazzle L300
