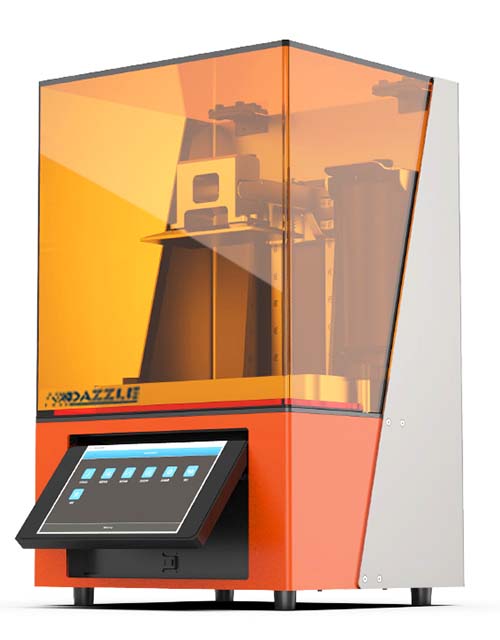

User Friendly LCD-SLA 3D Printer

Dazz 3D L120 Pro has a high price–performance ratio, with high printing precision can be prefect used in dental，jewelry，animation， prototyping，education.L120 is very suit high precision requirement situation.With Auto Resin System, Intuitive Control,Auto Resin Wiper and Air-purification system super user friendly!

  • Speed

    36

    mm/h

  • Build Volume (X, Y, Z)

    120 x 68 x 150

    mm

  • Layer Thickness

    25 / 35 / 50 /100

    Microns

See The Video Get A Quote
  • High Precision
    High Precision
  • High Speed
    High Speed
  • Touch Screen
    Touch Screen
  • Mini Printing
    Mini Printing

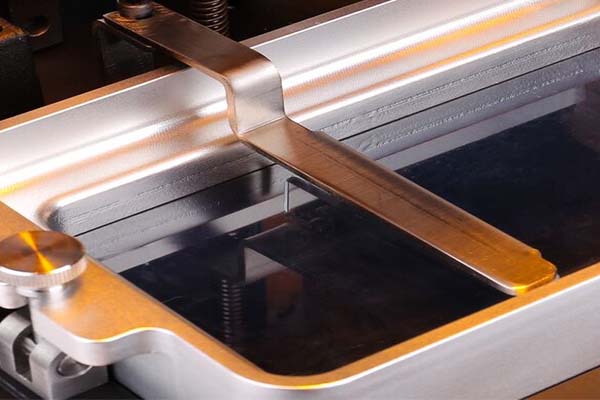

Auto Resin Wiper

The pro version includes an effective resin wiper to remove particulates and improve print consistency and quality by mixing the solid powder evenly when ceramic resin, powder, or other creative materials are added. While, when printing with Dazz 3D resins, there is no need to open the auto resin wiper due to the extension of printing time and quality it may caused.

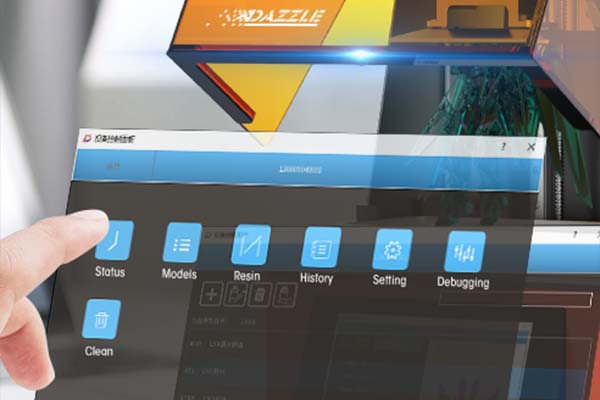

Intuitive Control

With the deluxe 7'' touchscreen monitor on the body, users change print settings & track printing status anytime with just a simple touch control.

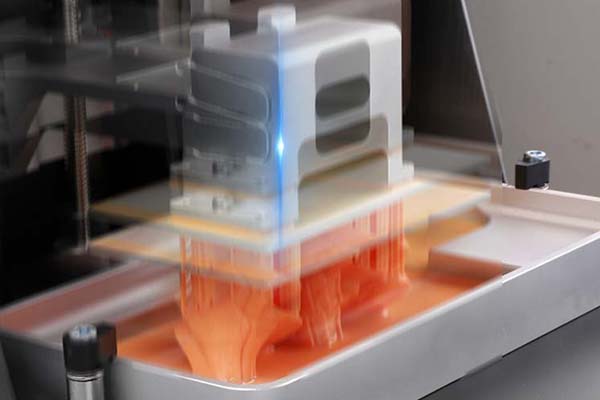

Fast print speed

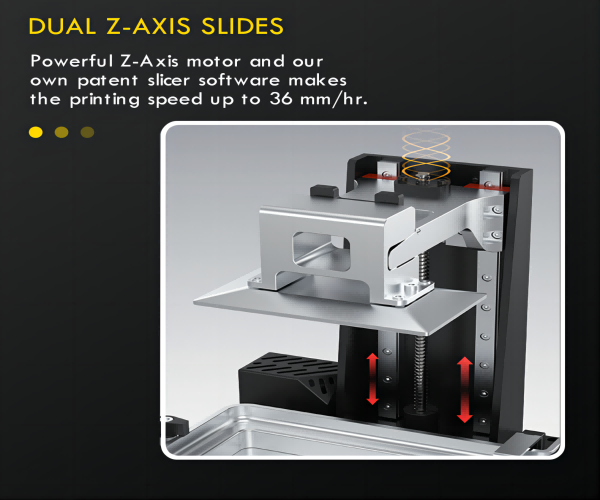

High precision, yet not comprising on printing speed. The light rate 3.8 times faster than normal light-cured resin 3D printer. The printing speed is up to 12-36mm/hr.

Resin Supply

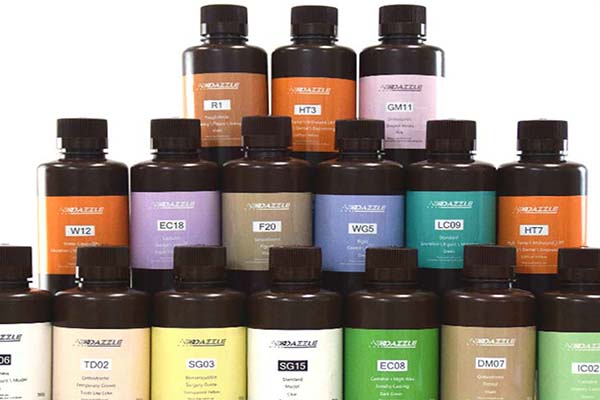

We supply 7 kinds of resins include:Casting•HighWax Resin, High-temp Resin,Tough Resin,Rigid Resin,Water Cleanable Resin,Standard Resin,Human Model Resin for different industries.

Our patented resin carries high tensile strength, high elongation, and elastic properties. We also provide castable wax resin. Combination of patented resin and high accuracy 3D printer produce superior result with fine detail and smooth surface. It is ideal for providing fast design verification models.

  • Tech Data
    SDS

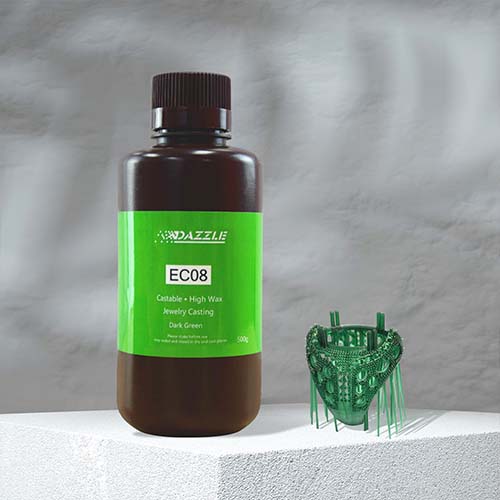

    EC08 Jewelry Design: Known as castable wax resin, this resin offers smooth stereolithography surfaces and is recommended to use in jewelry making for custom try-ons and direct investment.

  • Tech Data
    SDS

    F20 3D Sculpting: Prints smoothly and precisely, best for use in portrait and prototype applications.

  • Tech Data
    SDS

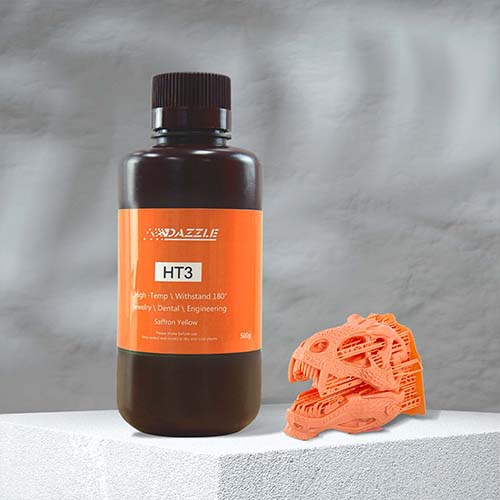

    HT3 High Temperatrue: Withstands heat deflection temperature (HDT) of 180 °C and is widely used in hot and cold molding for environmental testing, production processes and dental practices.

  • Tech Data
    SDS

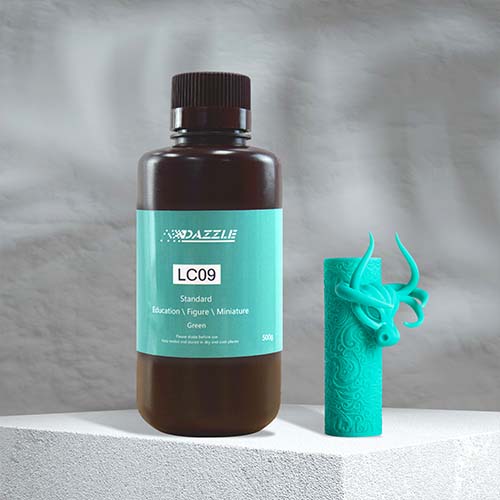

    LC09 Unbeatable Price:Create models with outstanding performance and excellent details without sacrificing the strength.

  • Tech Data
    SDS

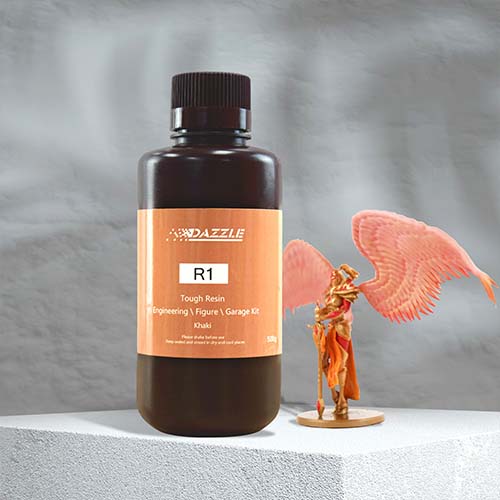

    R1 High toughness:Suitable for high toughness requirements.

  • Tech Data
    SDS

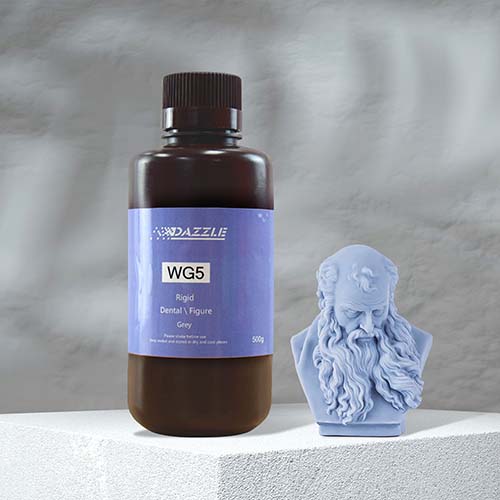

    WG5 Rigid: Features high resistance to deformation, high rigidity and polished finish. Performs well in printing prototypes, portraits, and dentistry models.

  • Tech Data
    SDS

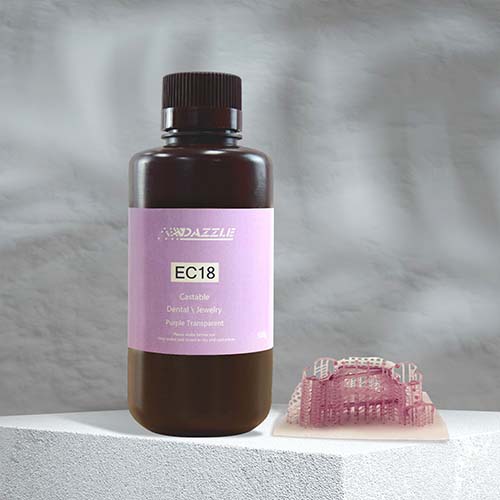

    EC18 Castable Resin for Dental and Jewelry

  • Tech Data
    SDS

    HT7 High -Temp withstand 180° for Dental

  • Tech Data
    SDS

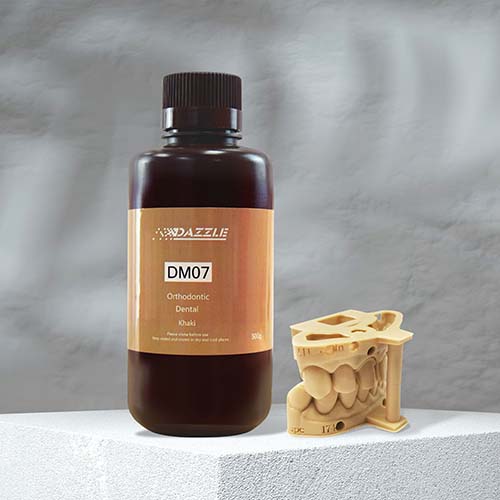

    DM07 Orthodontic Resin for Dental

  • Tech Data
    SDS

    W12 Water Cleanable Resin for Education

  • Tech Data
    SDS

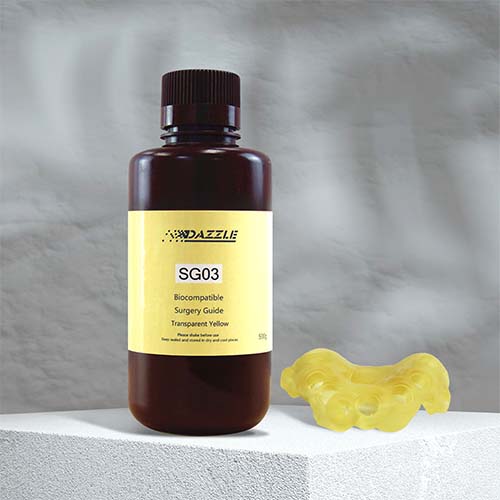

    SG03 Biocompatible Resin for Surgery Guide

  • Tech Data
    SDS

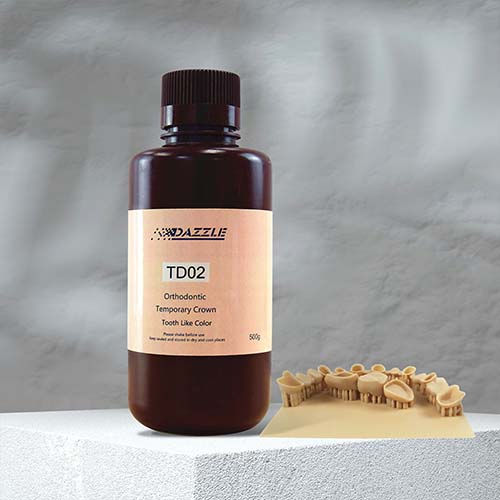

    TD02 Orthodontic Resin for Dental

  • Tech Data
    SDS

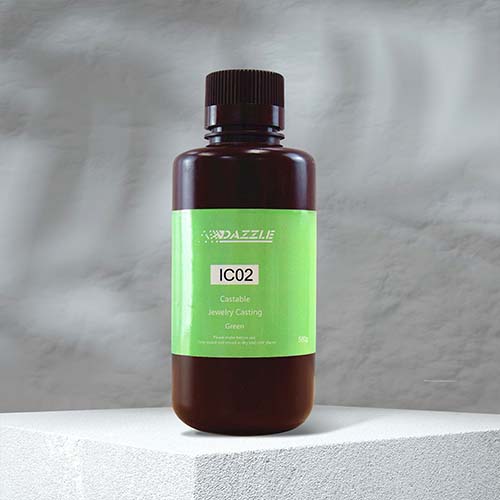

    IC02 Castable Resin for Jewelry

  • Tech Data
    SDS

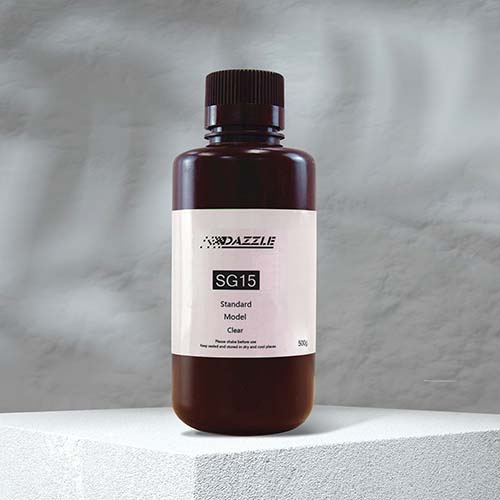

    SG15 Standard Resin for Dental, Figure

  • Tech Data
    SDS

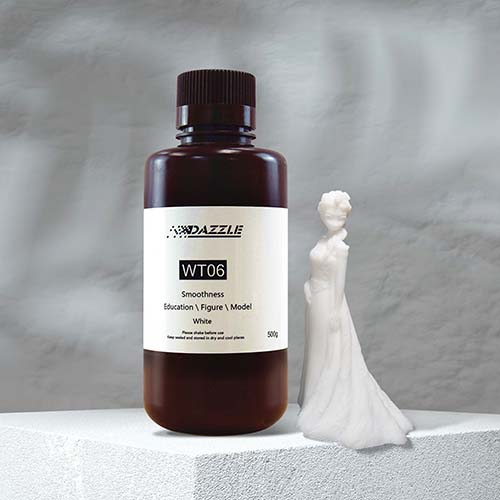

    WT06 Smoothness Resin for Education, Figure

  • Tech Data
    SDS

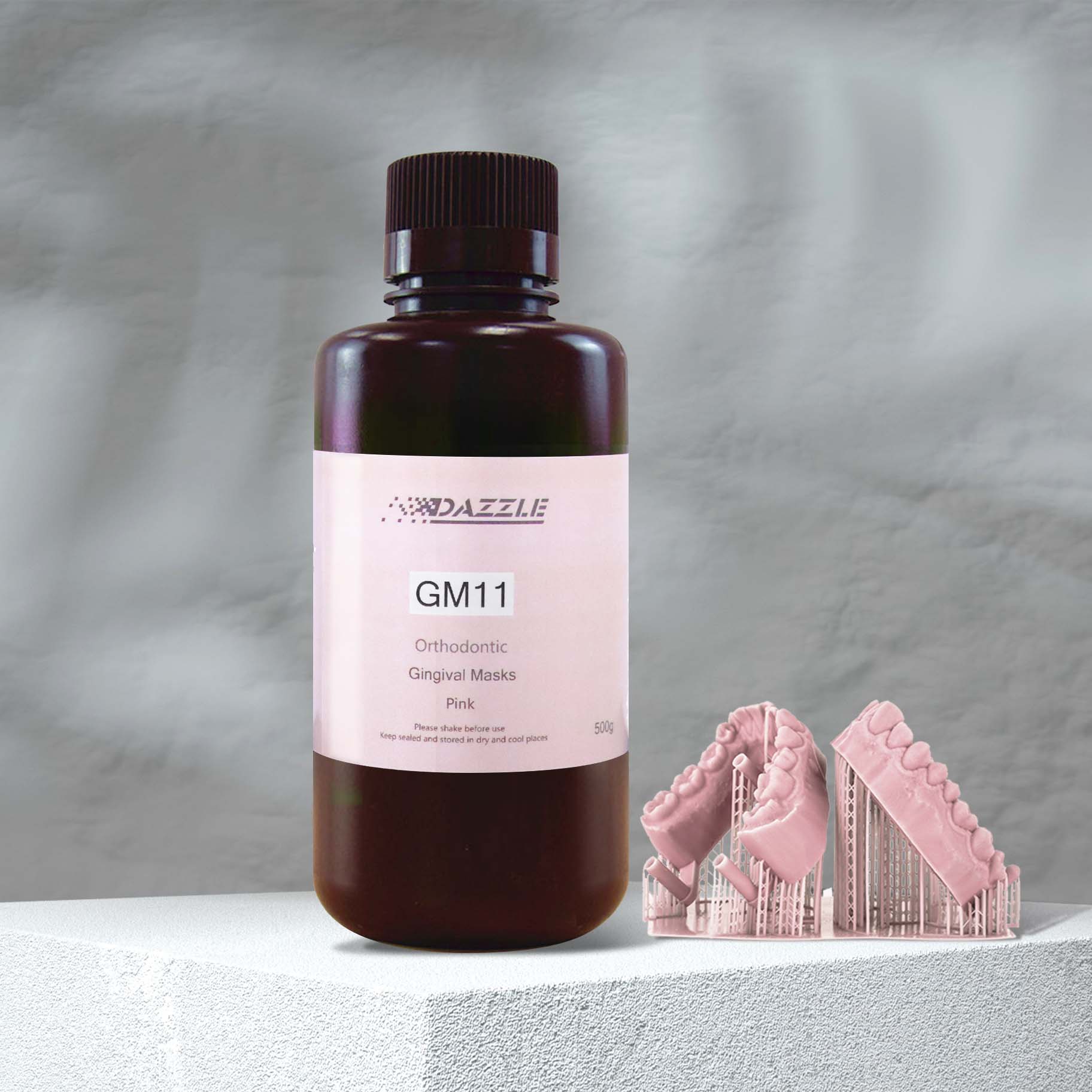

    GM11 Orthodontic Resin for Gingival Masks

DDStarter is self-develop software by Dazz 3D team. It is a powerful, simple and user friendly software. We dedicated to user needs and focused on enhancing user experience. Easily comprehensible software can be utilize after quick learning.

Open file

Scale

Rotate

Layout

Add Support

Print
  • Open file

    Add .STL or .OBJ to Dazzle3d software.

  • Scaling

    Enlarges or diminishes objects.

  • Rotate

    Rotates around the center to make the object printing more easily and has a high quality surface.

  • Layout

    To copy a layout and place the models in the desired position.

  • Add support

    Prepare models for reliable printing with Automatic or manual support generation.

  • Slicing and Print

    Automatic slicing and then importing data from computer into 3d printer.

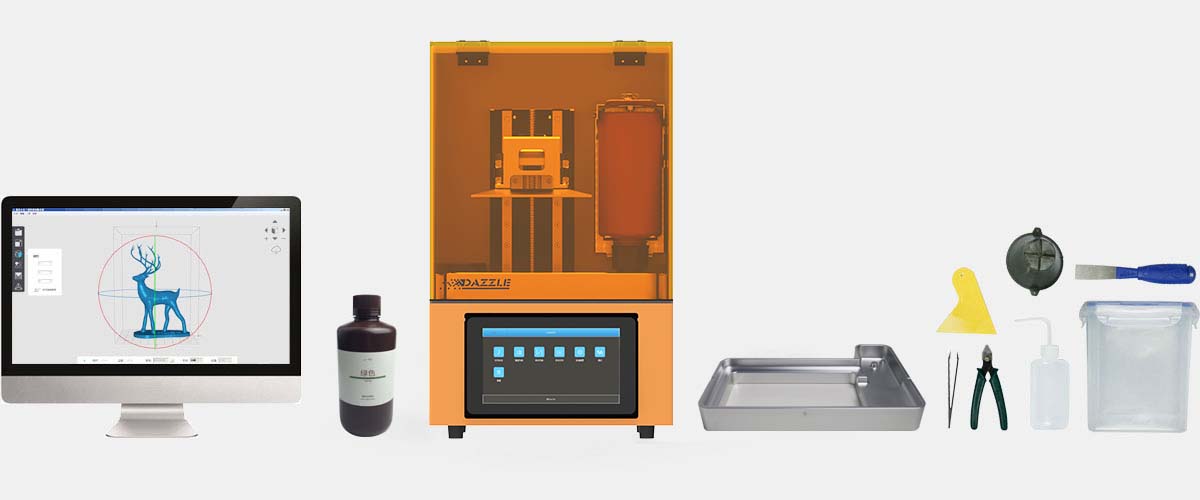

L120 Pro Bundle
  •
    1 x Dazz 3D L120 pro printer
  •
    1 x Resin Tank
  •
    1 x Finishing kit
Finishing Kit
  •
    1 x Scraper
  •
    1 x Plier
  •
    1 x Tweezer
  •
    1 x Squeegee
  •
    2 x Watertight containers
  •
    1 x Filter
  •
    Nitrile gloves
Printer Specs
  • Technology
    LCD Stereolithography (LCD-SLA)
  • Footprint
    420 x380 x640mm (16.5 x15 x 25.2 in)
  • Operating Temperature
    18-28ºC
  • Net Weight
    12.5kg
  • Connectivity
    USB,WiFi,Ethernet
  • Input Power
    100-240V, 50-60HZ , 2A
  • Output Power
    24V, 4A
Printing Specs
  • XY Resolution
    0.047mm
  • Z Resolution
    0.01mm
  • Layer Thickness
    0.025 / 0.035 / 0.05 / 0.1 mm
  • Build Volume (X, Y, Z)
    120 x 68 x 150mm (4.7 x 2.7 x 5.9 in)
  • Laser Scanning Speed
    12-36mm/hr
  • Minimum Hole Diameter
    0.3mm
  • Minimum wall thickness
    0.2mm
Software Specs
  • System Requirements
    Windows,Mac
  • File Size
    30MB
  • Input File
    .STL , .OBJ , .DDEB and .DDWP
  • Supports
    Automatic and manual support generation, Easily removable
Features
  •
    Simple print setup
  •
    Auto-generation of supports & manual support editing features
  •
    Augmentation, rotation & placement
  •
    Layer slicer for path inspection
  •
    .STL , .OBJ , .DDEB and .DDWP file input
  •
    Auto resin wiper
  •
    Auto resin system
  •
    Intuitive control
  •

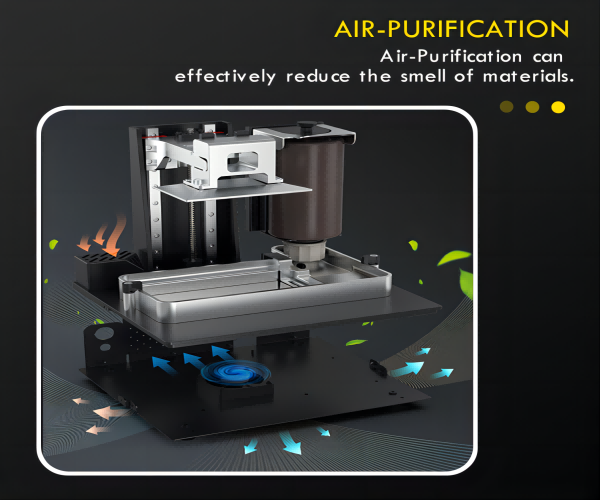

    Air-purification system
  •
    Fast print speed
Material
  •
    Dazz 3D Resin EC08,HT3,F20,R1,LC09,W1,WG5
  •
    Third Party Resin
Printer Specs

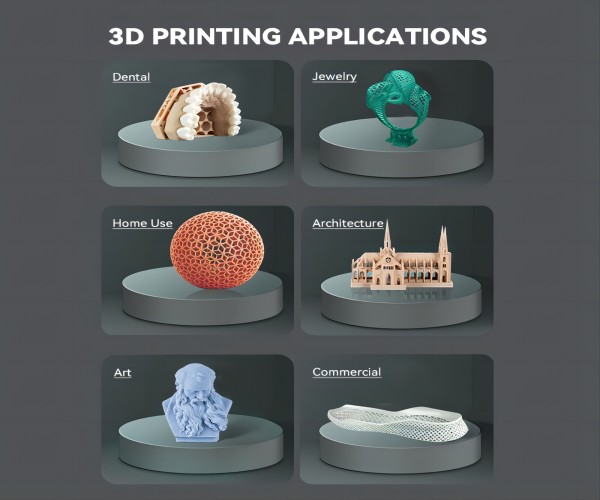

Dental Study

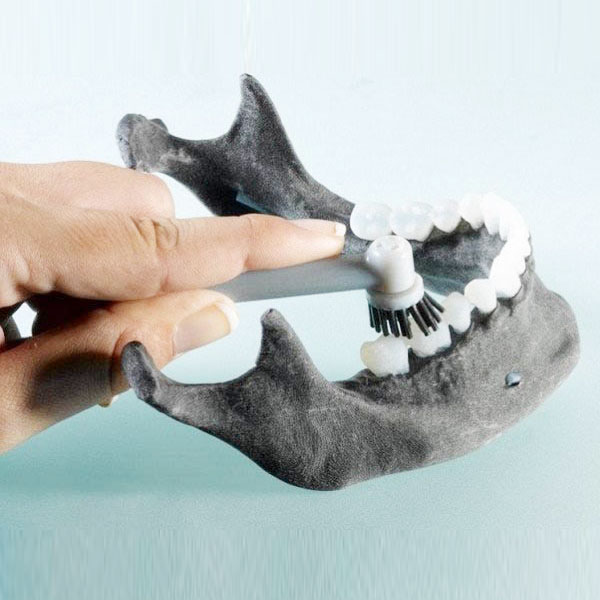

The L120 allows you to print precise dental models from intraoral or 3D scans, which can then be used to test the fit of crowns, copings, and dental appliances.

Prototyping

The L120 provides a quick way to evaluate, optimize and communicate your designs with functional prototypes. Most importantly it can reduce production costs in the long term.

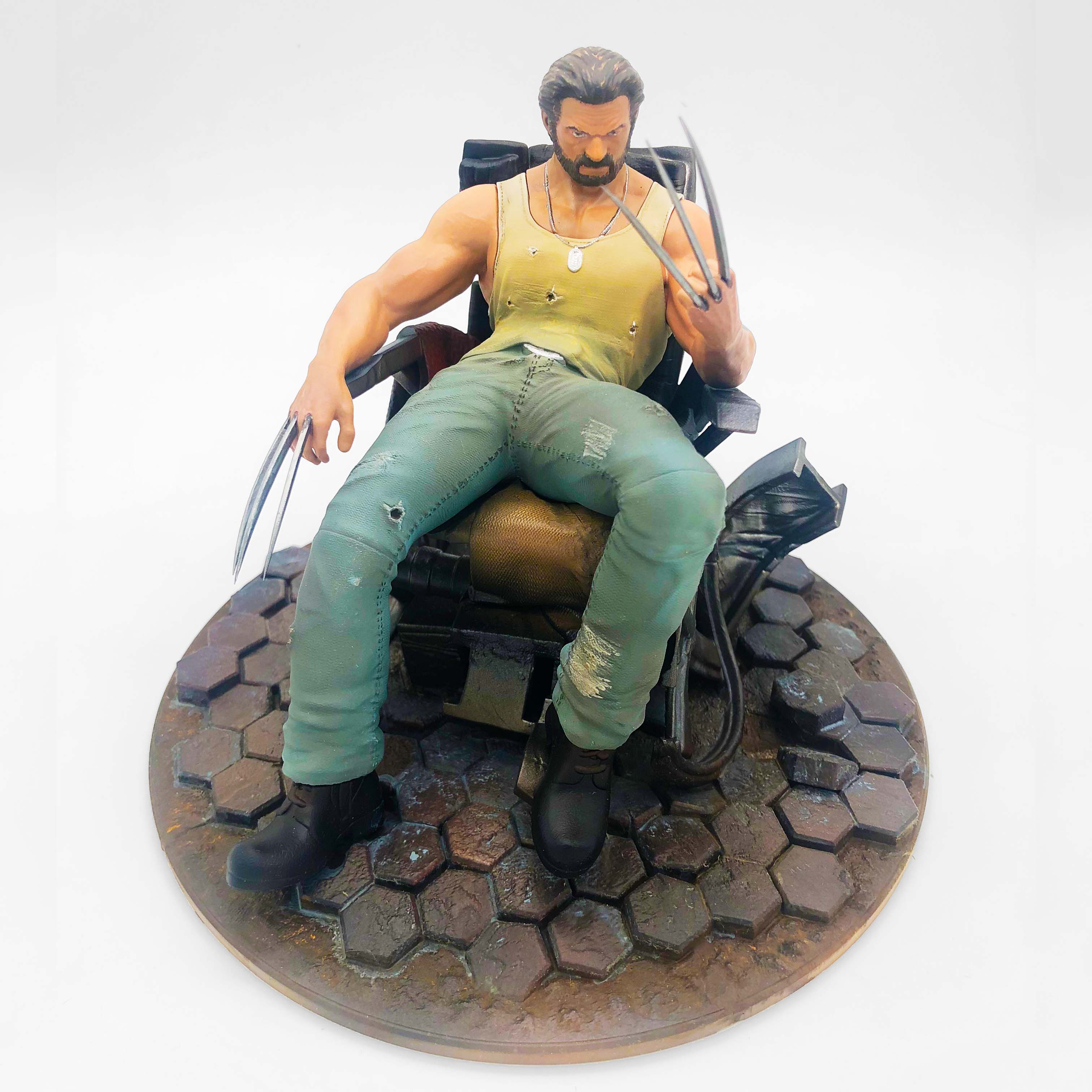

Sculpture

Thank to the high precision and the F20 resin we can print smoothly and precisely, best for use in portrait.

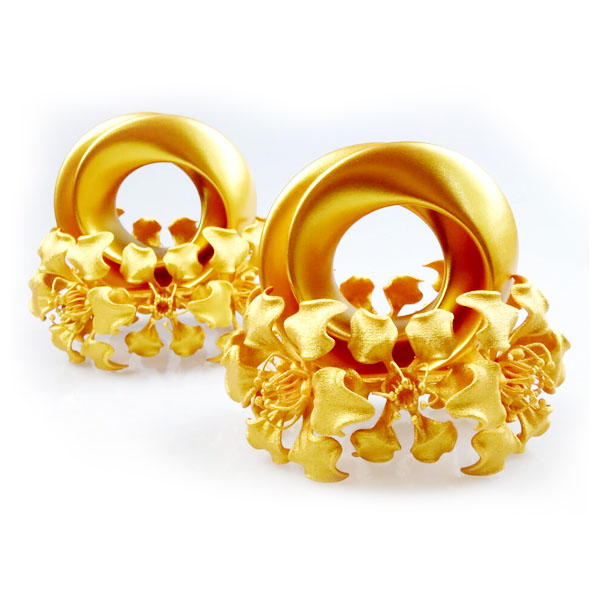

Jewelry Design

The L120 printer is a wise choice forjewelry designers. High resolutionmakes it easy to create crisp details Besides if you use the casting wax resins to print model you can use them directly.

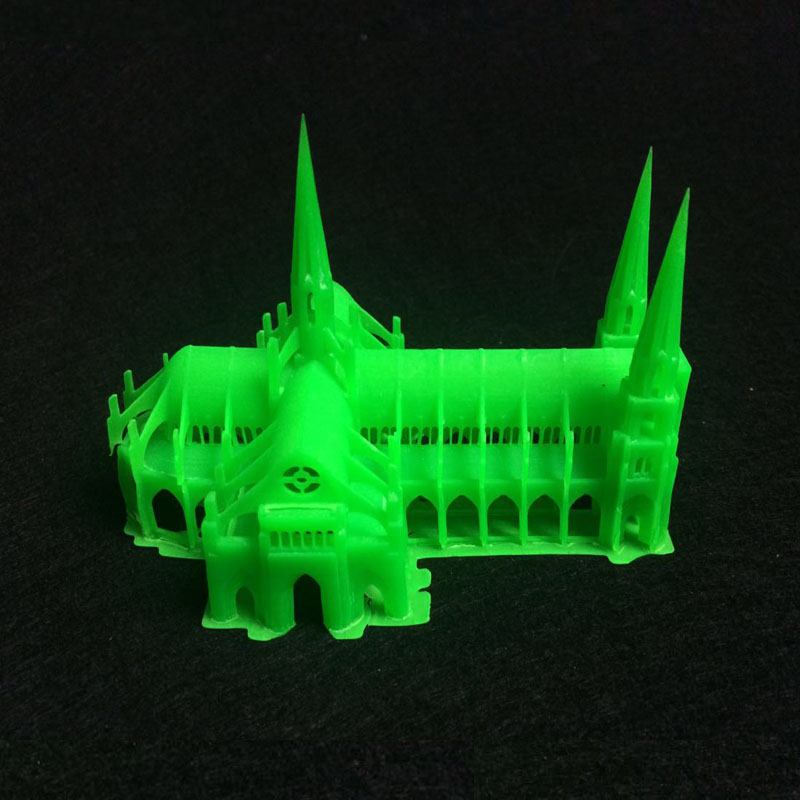

Architecture

It's easy for L120 to create complex.accurate and durable scale models quickly and cost-effectively.Magnificent 3D printed architecture scale models can help architects impress their clients, create and seize more opportunities. All of this can be done in-house

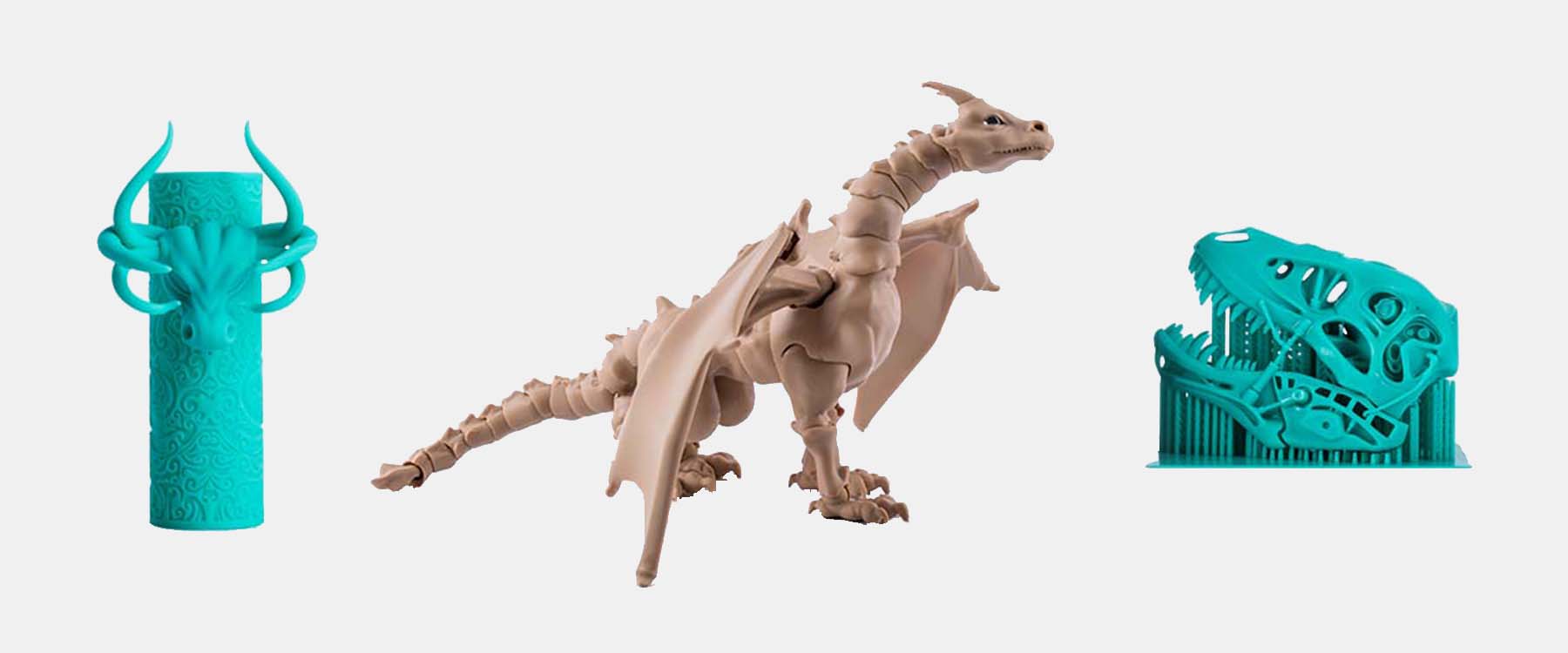

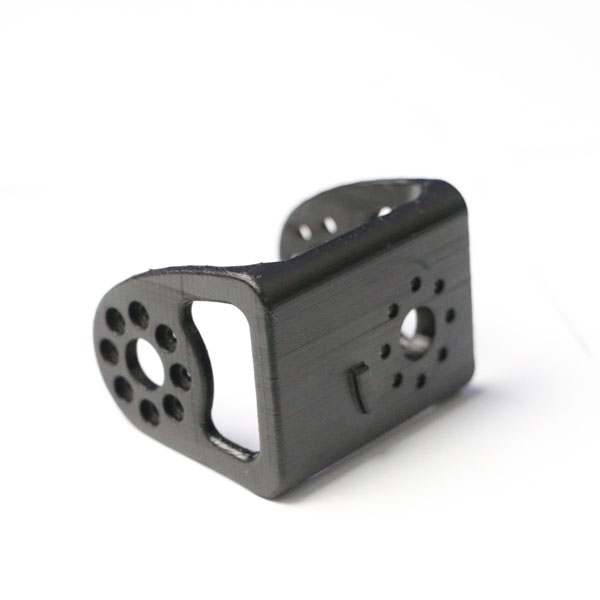

Printed by Dazz 3D L120 Pro
