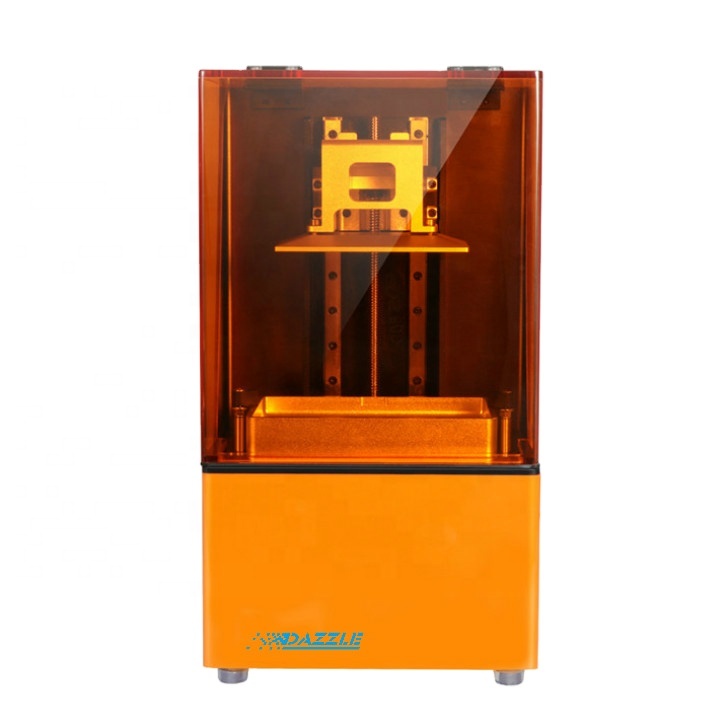

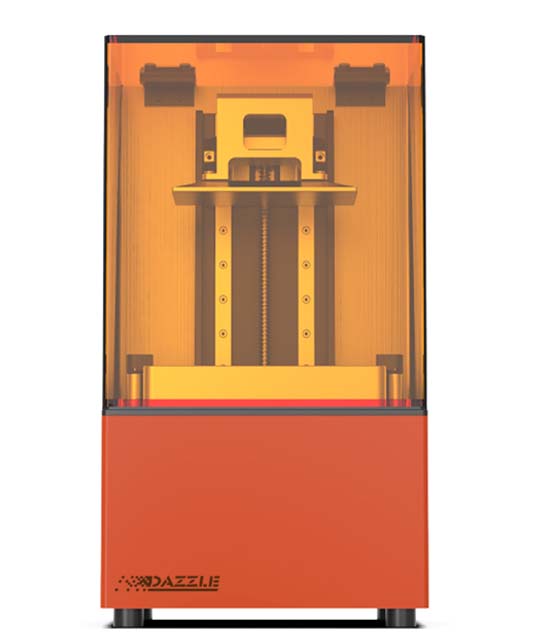

High precision LCD-SLA 3D Printer

Dazz 3D L120 has a high price–performance ratio, with high printing precision can be prefect used in dental，jewelry，animation，prototyping，education.

  • Speed

    36

    mm/h

  • Build Volume (X, Y, Z)

    120 x 68 x 150

    mm

  • Layer Thickness

    25 / 35 / 50 /100

    Microns

See The Video Get A Quote
  • Printing Stable
    Printing Stable
  • Mini Printing
    Mini Printing
  • High Speed
    High Speed
  • High Precision
    High Precision

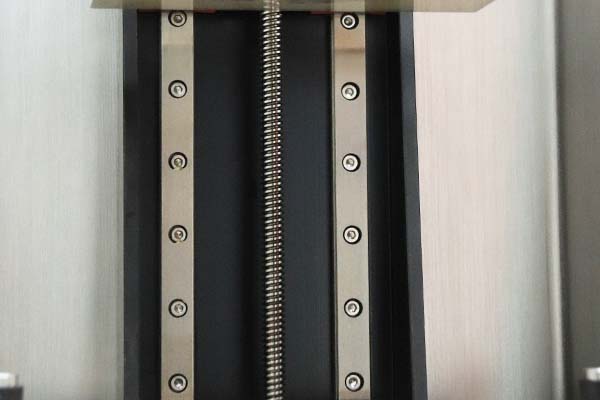

Dual Z-Axis Slides

The unique dual-liner slides are designed to eliminate wobbling,and create highly precise 3D models with an ultra-smooth surface.

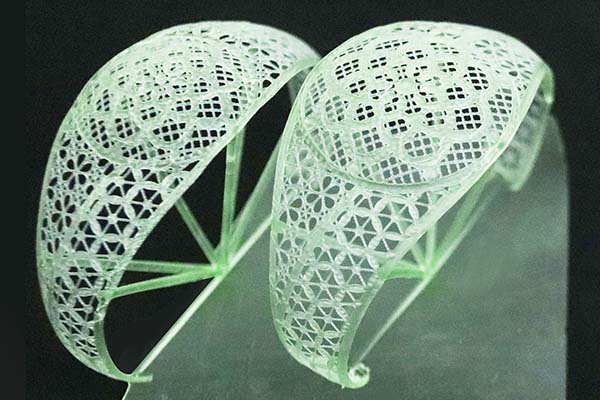

High Resolution

The Layer resolution capability is up to 25 microns, XY Resolution is 47μm, and Z resolution is 10μm.

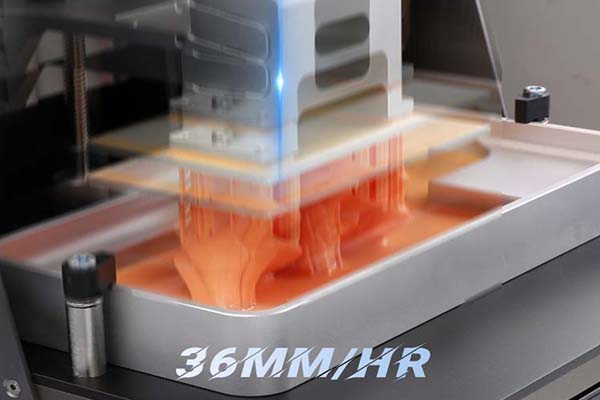

Fast Printer Speed

High precision, yet not comprising on printing speed. The light rate 3.8 times faster than normal light-cured resin 3D printer. The printing speed is up to 36mm/hr.

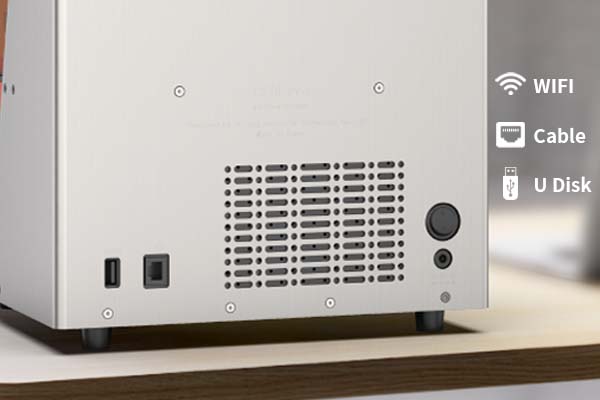

Convenient connection

You can use the cable, USB drive, or WiFi connections to get started.

Our patented resin carries high tensile strength, high elongation, and elastic properties. We also provide castable wax resin. Combination of patented resin and high accuracy 3D printer produce superior result with fine detail and smooth surface. It is ideal for providing fast design verification models.

  • Tech Data
    SDS

    EC08 Jewelry Design: Known as castable wax resin, this resin offers smooth stereolithography surfaces and is recommended to use in jewelry making for custom try-ons and direct investment.

  • Tech Data
    SDS

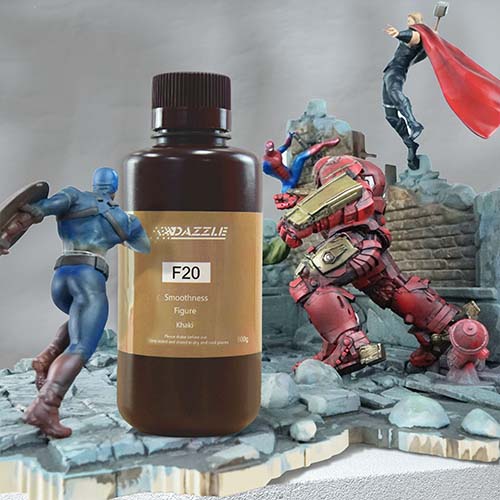

    F20 3D Sculpting: Prints smoothly and precisely, best for use in portrait and prototype applications.

  • Tech Data
    SDS

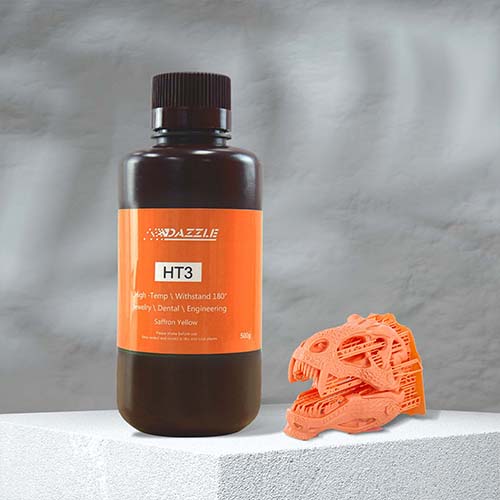

    HT3 High Temperatrue: Withstands heat deflection temperature (HDT) of 180 °C and is widely used in hot and cold molding for environmental testing, production processes and dental practices.

  • Tech Data
    SDS

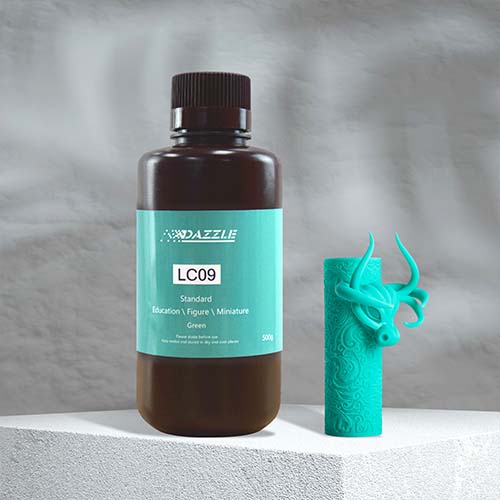

    LC09 Unbeatable Price:Create models with outstanding performance and excellent details without sacrificing the strength.

  • Tech Data
    SDS

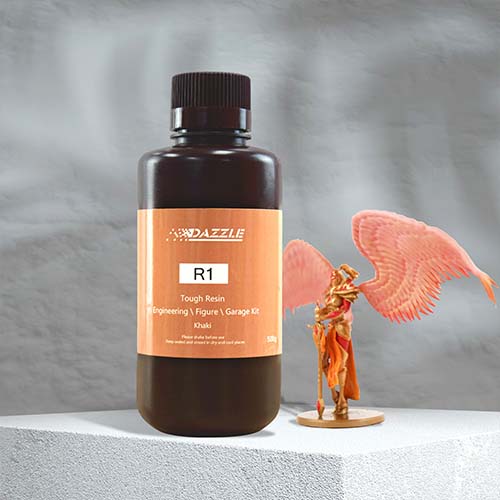

    R1 High toughness:Suitable for high toughness requirements.

  • Tech Data
    SDS

    W1 Nasty Free:Save the cost for alcohol purchasing, and get rid of nasty feelings since it is water cleanable and safer for kids to use.

  • Tech Data
    SDS

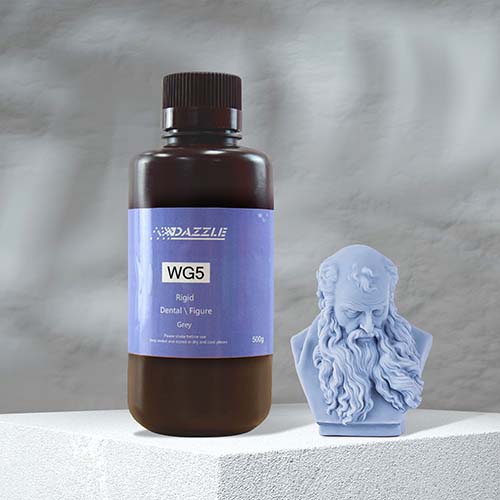

    WG5 Rigid: Features high resistance to deformation, high rigidity and polished finish. Performs well in printing prototypes, portraits, and dentistry models.

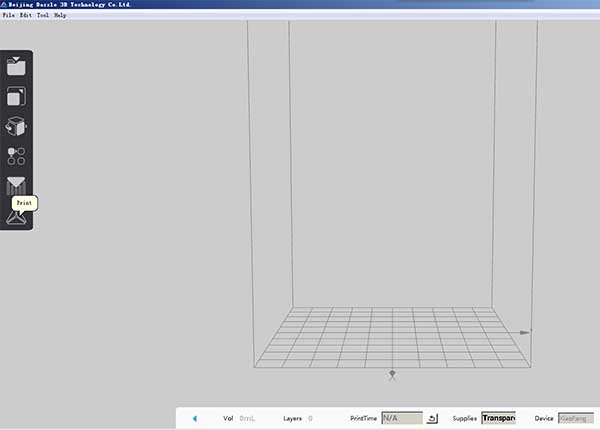

DDStarter is self-develop software by Dazz 3D team. It is a powerful, simple and user friendly software. We dedicated to user needs and focused on enhancing user experience. Easily comprehensible software can be utilize after quick learning.

Download

Windows

Open file

Scale

Rotate

Layout

Add Support

Print

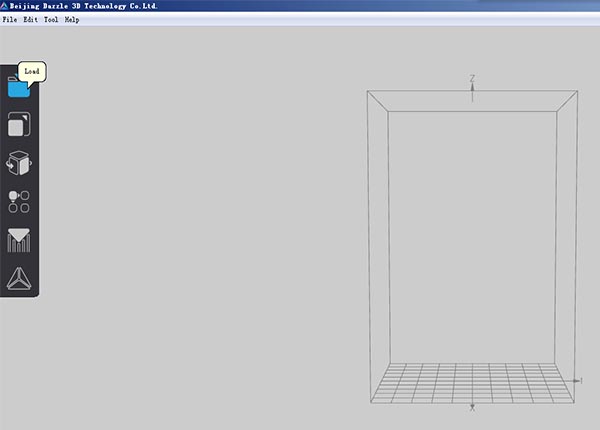

  • Open File

    Add .STL,.OBJ, .DDEB, .DDWP to DDStarter software.

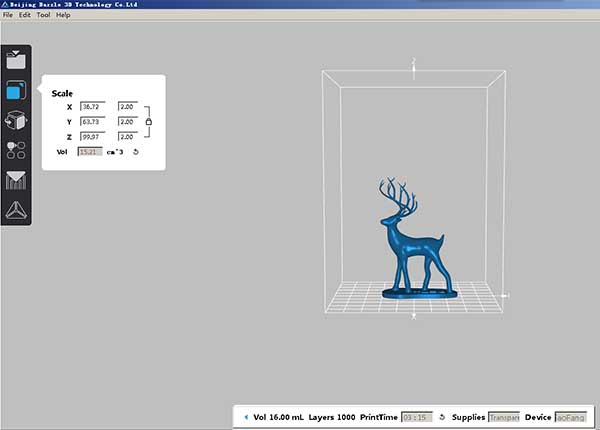

  • Scaling

    Enlarges or diminishes objects.Also can copy models.

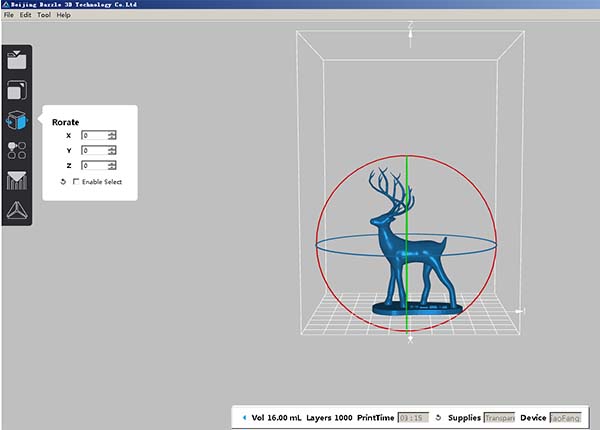

  • Rotate

    Rotates around the center to make the object printing more easily and has a high quality surface.

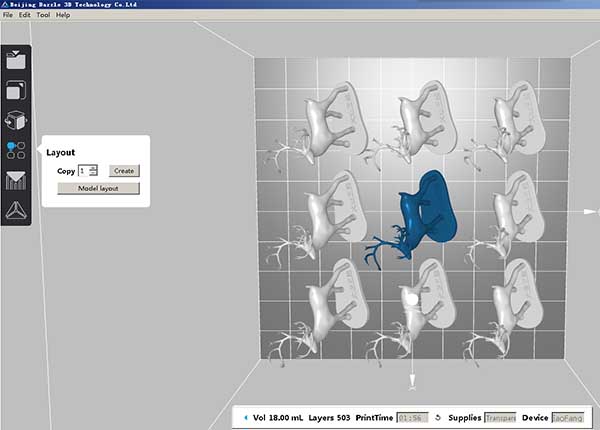

  • Layout

    To copy a layout and place the models in the desired position.

  • Add support

    Prepare models for reliable printing with Automatic or manual support generation.

  • Slicing and Print

    Automatic slicing and then importing data from computer into 3d printer.

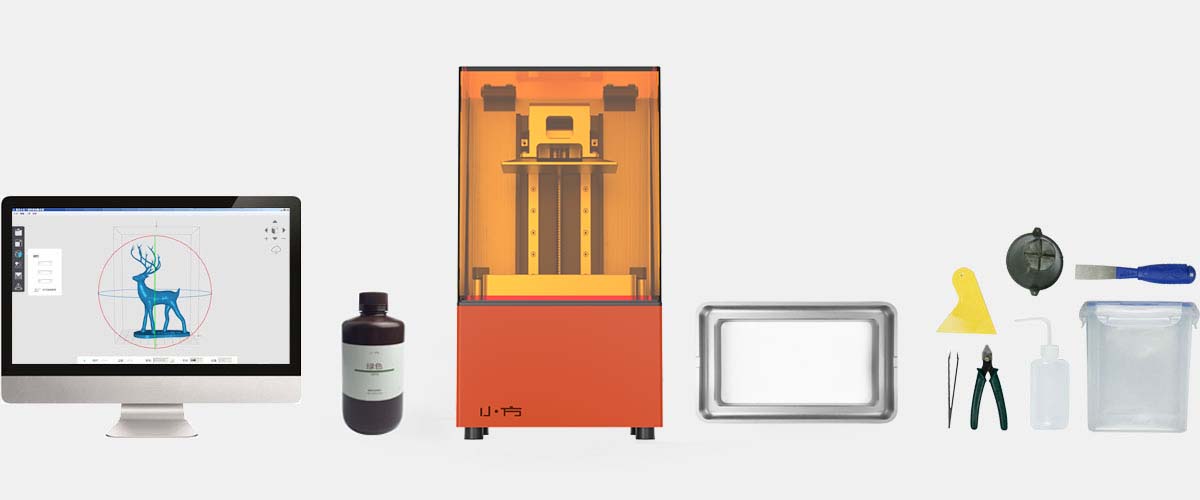

L120 Bundle
  •
    1 x Dazz 3D L120 printer
  •
    1 x Resin Tank
  •
    1 x Finishing kit
Finishing Kit
  •
    1 x Scraper
  •
    1 x Plier
  •
    1 x Tweezer
  •
    1 x Squeegee
  •
    2 x Watertight containers
  •
    1 x Filter
  •
    Nitrile gloves
Printer Specs
  • Technology
    LCD Stereolithography (LCD-SLA)
  • Footprint
    221 x 175 x 403mm (8.7 x 6.9 x 15.9 in)
  • Operating Temperature
    18-28ºC
  • Net Weight
    6.5kg
  • Connectivity
    USB,WiFi,Ethernet
  • Input Power
    100-240V, 50-60HZ , 2A
  • Output Power
    24V, 4A
Printing Specs
  • XY Resolution
    0.047mm
  • Z Resolution
    0.01mm
  • Layer Thickness
    0.025 / 0.035 / 0.05 / 0.1 mm
  • Build Volume (X, Y, Z)
    120 x 68 x 150mm (4.7 x 2.7 x 5.9 in)
  • Laser Scanning Speed
    12-36mm/hr
  • Minimum Hole Diameter
    0.3mm
  • Minimum wall thickness
    0.2mm
Software Specs
  • System Requirements
    Windows,Mac
  • File Size
    30MB
  • Input File
    .STL , .OBJ , .DDEB and .DDWP
  • Supports
    Automatic and manual support generation, Easily removable
Features
  •
    Simple print setup
  •
    Auto-generation of supports & manual support editing features
  •
    Augmentation, rotation & placement
  •
    Layer slicer for path inspection
  •
    .STL , .OBJ , .DDEB and .DDWP file input
Material
  •
    Dazz 3D Resin EC08,HT3,F20,R1,LC09,W1,WG5
  •
    Third Party Resin
Printer Specs

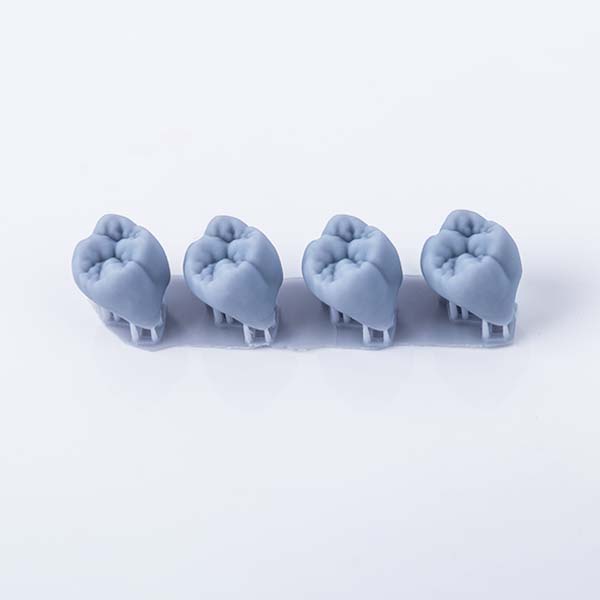

Dental Study

The L120 allows you to print precise dental models from intraoral or 3D scans, which can then be used to test the fit of crowns, copings, and dental appliances.

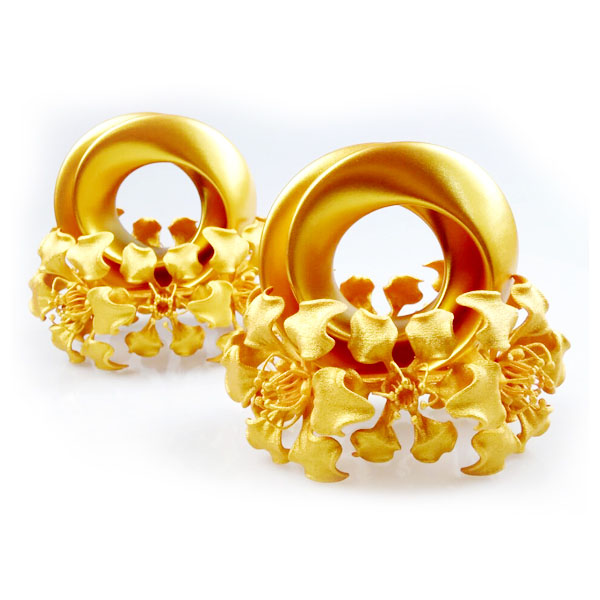

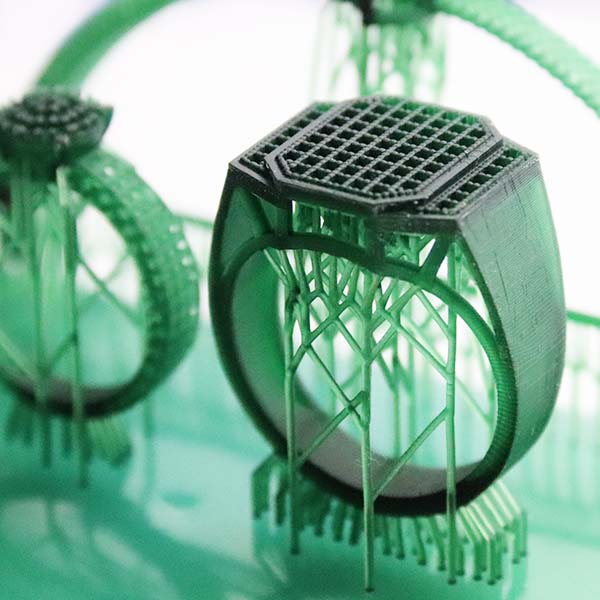

Jewelry Design

The L120 printer is a wise choice for jewelry designers. High resolution makes it easy to create crisp details. Besides if you use the casting wax resins to print model you can use them directly.

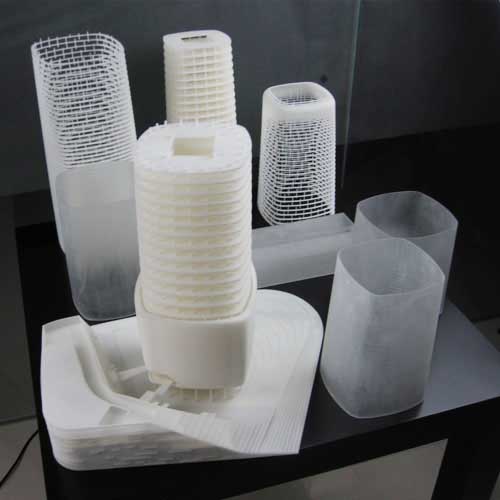

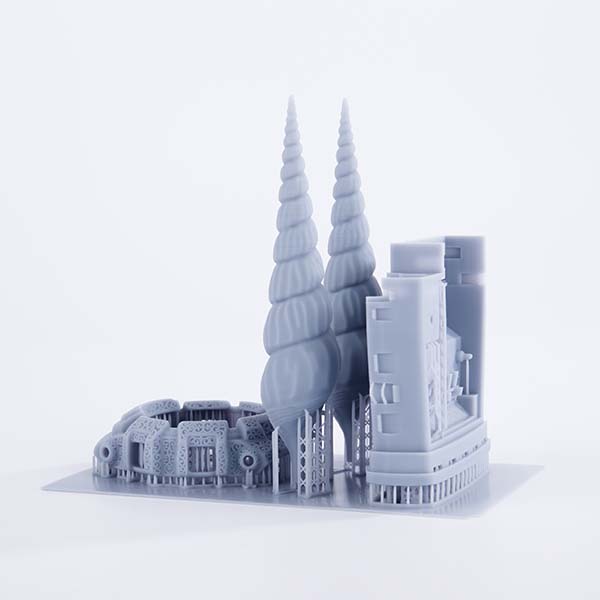

Architecture

It’s easy for L120 to create complex, accurate and durable scale models quickly and cost-effectively. Magnificent 3D printed architecture scale models can help architects impress their clients, create and seize more opportunities. All of this can be done in-house.

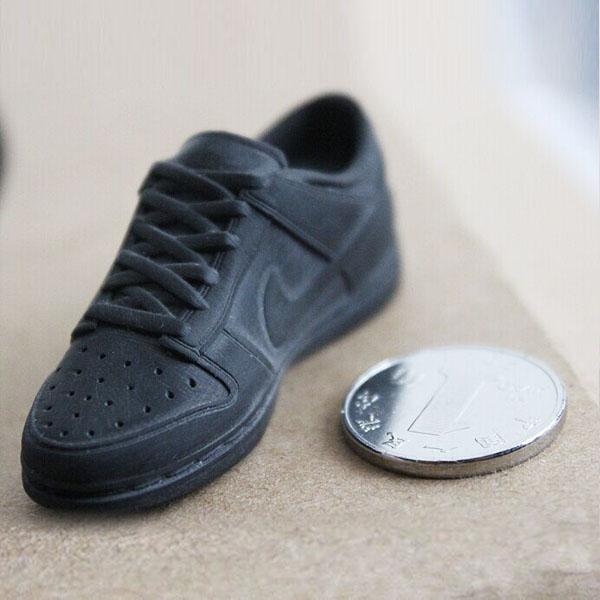

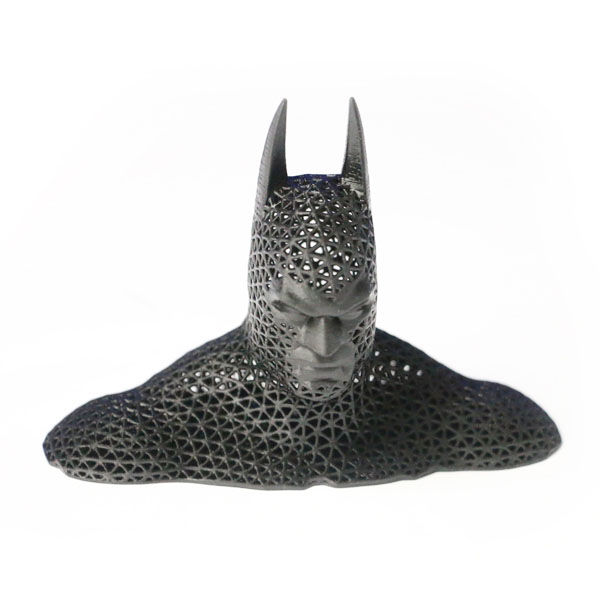

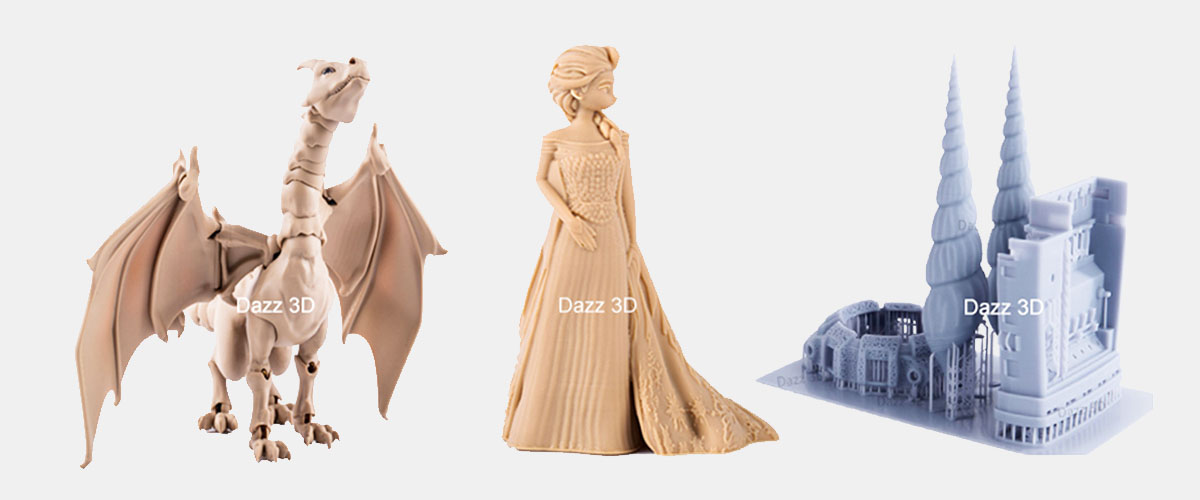

Printed by Dazz 3D L120
