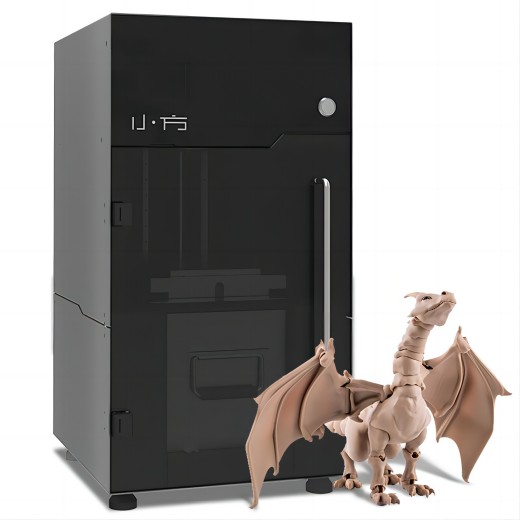

Industrial Grade SLA DS130 3DPrinter

Dazzle 3D DS130 is desktop Industrial grade 3d printer, Sinking laser 3D printing curing technology, with high printing precision can be prefect used in dental，jewelry，animation，prototyping，education. DS130 is very suit high precision requirement situation.With Large capacity resin tank, Intuitive Control,Auto Resin Wiper and Air-purification system super user friendly!

  • Speed

    36

    mm/h

  • Build Volume (X, Y, Z)

    130 x 130 x 150

    mm

  • Layer Thickness

    25 / 50 / 100 / 200

    Microns

See The Video Get A Quote
  • Desktop Industrial grade 3d printer
    Desktop Industrial grade 3d printer
  • Sinking laser 3D printing curing technology
    Sinking laser 3D printing curing technology
  • Compatible with varied resins,excellent performance
    Compatible with varied resins,excellent performance
  • Imported high precision laser displacement sensor
    Imported high precision laser displacement sensor
Desktop Industrial grade 3d printer

Simple metal appearance, cuboid appears high-end hegemony

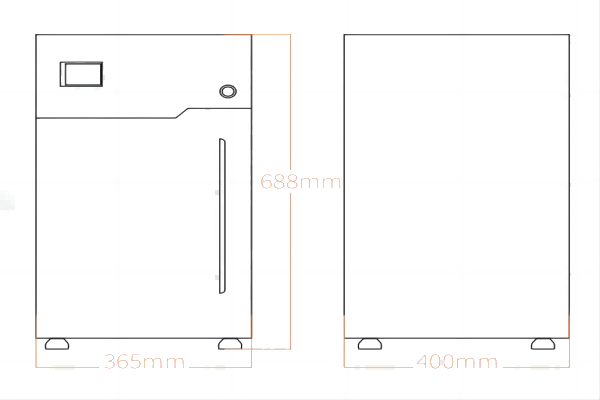

Overall Size

365(L)*400(W)*688(H)mm

DS130 Bundle |1 x Dazz 3D DS130 DLP printer |1 x Resin Tank |1 x Finishing kit Finishing Kit |1 x Scraper |1 x Plier |1 x Tweezer |1 x Squeegee |2 x Watertight containers |1 x Filter |Nitrile gloves Printer Specs Technology|Digital Light Processing (SLA) Machine Size| 365*400*688mm Operating Temperature|18-28ºC Net Weight|32kg Connectivity|Wifi & USB Input Power|100-240V, 50-60HZ , 3A Output Power|24V, 2.5A Printing Specs Laser| 405nm/spot diameter 70um Layer Thickness|0.025 / 0.005 / 0.2 / 0.1 mm Build Volume (X, Y, Z)|130*130*150mm Software Specs System Requirements|Windows7 or higher, OpenGL 3.0/2G RAM | Mac OS X 10.9 and Higher, Minimum 2GB RAM File Size|20MB Input File|.STL/.OBJ/.SLC/.DAZZLE Supports|Automatic and manual support generation, Easily removable Features |Simple print setup |Auto-generation of supports & manual support editing features |Augmentation, rotation & placement |Layer slicer for path inspection |.STL / .OBJ /.SLC file input Material | Castable Resin |Ceramic-like Resin |Standard Resin |And More

565

Windows

Windows7 or higher, OpenGL 3.0/2G RAM
Size:20M

Mac

Mac OS X 10.9 and Higher, Minimum 2GB RAM
Size:20M

Open file

Scale

Rotate

Layout

Add Support

Print

  • none

    none

  • none

    none

  • none

    none

  • none

    none

  • none

    none

Printer Specs
Open file

Add .STL or .OBJ to Dazzle3d software.

Scaling

Enlarges or diminishes objects.

Rotate

Rotates around the center to make the object printing more easily and has a high quality surface.

Layout

To copy a layout and place the models in the desired position.

Add support

Prepare models for reliable printing with Automatic or manual support generation.

Slicing and Print

Automatic slicing and then importing data from computer into 3d printer.

DS130
