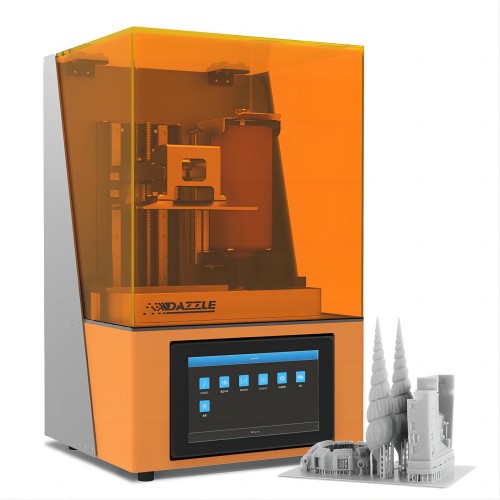

High precision LCD L140PRO 3D Printer

LCD 3D Resin Printer --- L140 pro The L140 is utilize 100W UV LED engine as light source, and ultra high precision dual Z-Axis slides to ensure the printing platform running stable, avoid missing layers during printing. The L140 version of the 3D printer is an upgraded product based on the "L120 pro", printing size is increased by 33.8%. The molding principle is the same. It uses the "LCD (Mask Stereolithography)" molding technology. The molding quality and printing accuracy of the two devices are basically the same. However, the pro version is more intelligent and user-friendly than the basic version in terms of man-machine experience!

Speed

36

mm/h
Build Volume (X, Y, Z)

140 x 84 x 150

mm
Layer Thickness

25 / 35 / 50 /100

Microns

See The Video Get A Quote

High Precision
High Speed
Touch Screen
Big constructing volume

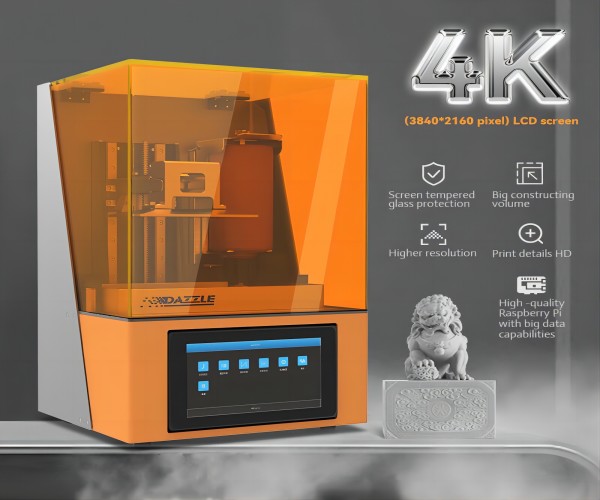

4K (3840*2160 pixel) LCD screen

Screen tempered glass protection,Big constructing volume,Higher resolution,Print details HD

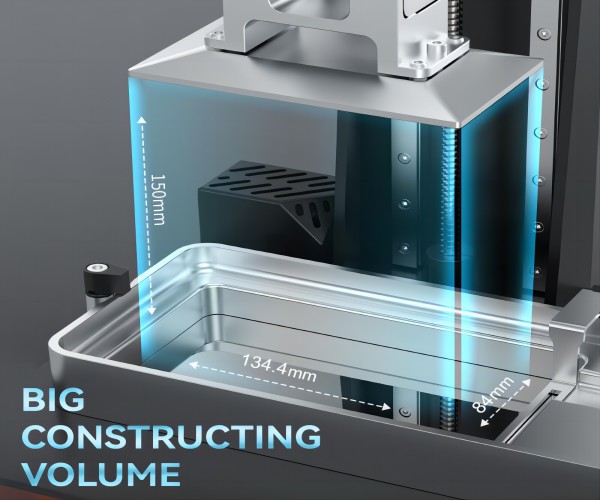

Big constructing volume

Forming size:140(L)*90(W)*150(H)mm

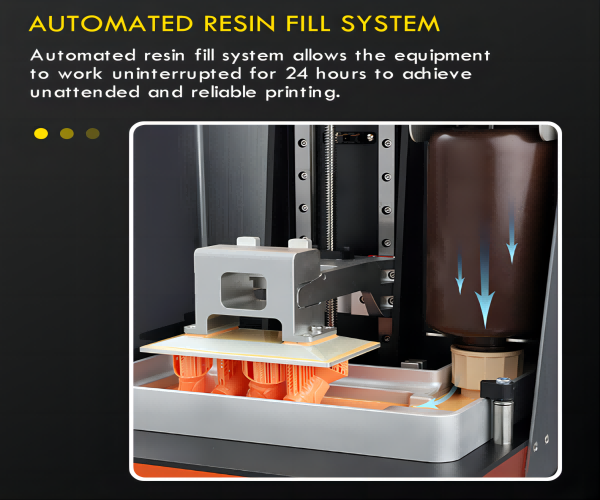

AUTOMATED RESIN FILL SYSTEM

Automated resin fill system allows the equipment to work uninterrupted for 24 hours to achieve unattended and reliable printing.

Touch Screen Operation

7 inch full color can operate 90° free rotation screen

Application Area

Larger processing size and higher processing accuracy, used in jewelry casting, dental, industrial design and other fields

AIR-PURIFICATION

Air-Purification can effectively reduce the smell of materials.

DUAL Z-AXIS SLIDES

Powerful Z-Axis motor and our own patent slicer software makes the printing speed up to 36 mm/hr.

THE PRINT DETAILS ARE MORE HIGH-DEFINITION

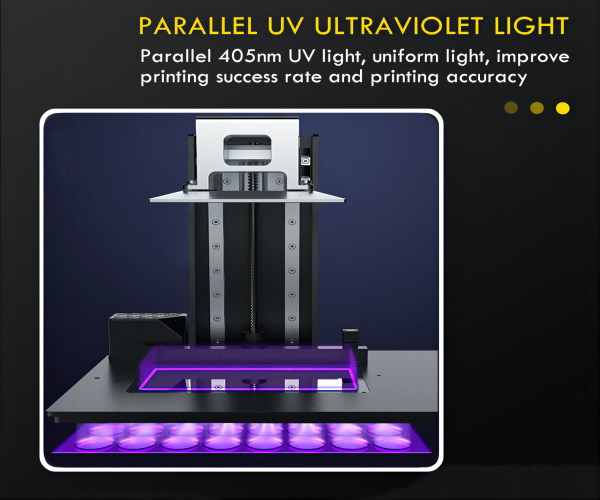

PARALLEL UV ULTRAVIOLET LIGHT

Parallel 405nm UV light,uniform light,improve printing success rate and printing accuracy

Dazzle-3D is self-develop software by Dazz 3D team. It is a powerful, simple and user friendly software. We dedicated to user needs and focused on enhancing user experience. Easily comprehensible software can be utilize after quick learning.

Windows

Windows7 or higher, OpenGL 3.0/2G RAM
Size:20M

Mac

Mac OS X 10.9 and Higher, Minimum 2GB RAM
Size:20M

Open file

Scale

Rotate

Layout

Add Support

Open file
Add .STL or .OBJ to Dazzle3d software.
Scaling
Enlarges or diminishes objects.
Rotate
Rotates around the center to make the object printing more easily and has a high quality surface.
Layout
To copy a layout and place the models in the desired position.
Add support
Prepare models for reliable printing with Automatic or manual support generation.
Slicing and Print
Automatic slicing and then importing data from computer into 3d printer.

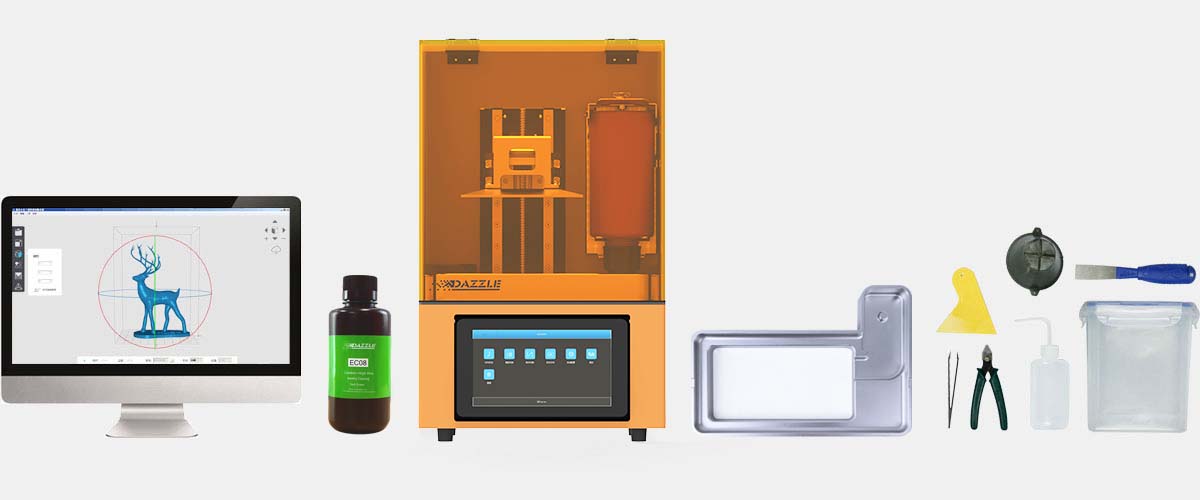

L140PRO Bundle

1 x Dazz 3D L140PRO printer
1 x Resin Tank
1 x Finishing kit

Finishing Kit

1 x Scraper
1 x Plier
1 x Tweezer
1 x Squeegee
2 x Watertight containers
1 x Filter
Nitrile gloves

Printer Specs

Technology

Stereolithography (LCD)
Footprint

285 x 247x 465mm (11.2x9.7 x 18.3 in)
Operating Temperature

18-28ºC
Net Weight

12.5kg
Connectivity

USB
Input Power

100-240V, 50-60HZ , 2A
Output Power

24V, 2.5A

Printing Specs

XYZ Resolution

0.05mm (0.00197 in)
Layer Thickness

0.025 / 0.05 / 0.1 mm
Build Volume (X, Y, Z)

140x 90x 150mm (5.3 x 3.3 x 5.9 in)
Laser Scanning Speed

2.5 m/s
Minimum Hole Diameter

0.5mm (0.01969 in)
Minimum wall thickness

0.3mm (0.01181 in)

Software Specs

System Requirements

Windows7 or higher, OpenGL 3.0/2G RAM
Mac OS X 10.9 and Higher, Minimum 2GB RAM
File Size

20MB
Input File

.STL and .OBJ
Supports

Automatic and manual support generation, Easily removable

Features

Simple print setup
Auto-generation of supports & manual support editing features
Augmentation, rotation & placement
Layer slicer for path inspection
.STL and .OBJ file input

Material

Dazz 3D Resin
Third Party Resin

Printer Specs

467286dcef-l120-control-pannel-user-manual-v2.pdf
Data Sheet

140pro

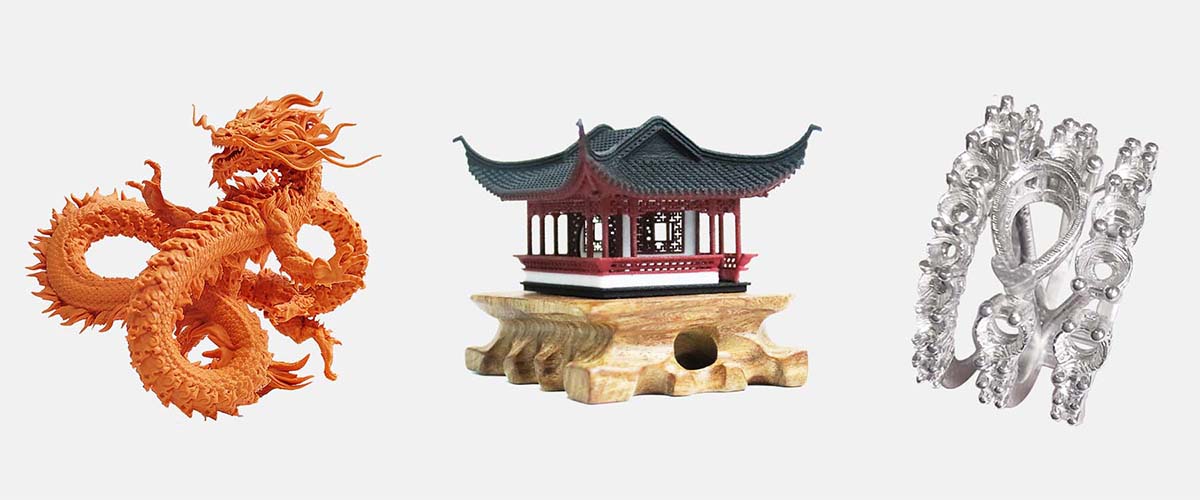

3D Printing Jewelry

Our technology and materials together offer superior detail, precision and a smooth surface finish that requires less finishing. Depending on your requirements, our resins can be finished by sandblasting or spray painting for a more detailed and ideal output.

DIY Flower Pot

3D printing “net flowerpot”, simple shape but amazing feeling at home. With some green plants and miniature decorations, it will looks beautiful and lively.

SLA 3D Printing Shoe

Like with any piece of innovation, designers have to start somewhere, and you better believe that the race is already being run by major shoe companies like Nike, adidas, New Balance and Under Armour who all want to stake their claim as the king of 3D printing.

Bionic Ant

We can see the thin attachments at the legs, antennae, and waist, these models can only be printed with high resolution SLA printer.

Hollow Carved Batman

Everyone has been interested in creating a Batman since the 1989 movie. Now we have created incredibly unique and amazing 3D printed Batman, thanks to talented S130 3D printers.
